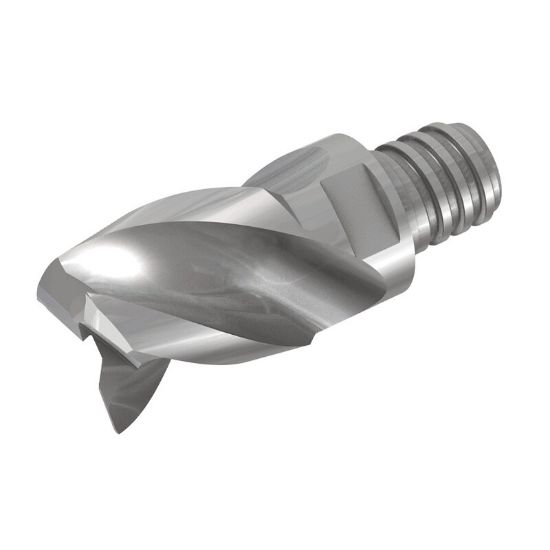

ISCAR MM EA250H19R3.0-3T15 IC08 DIA 25MM SH 0.9410 LOC 0.7480 OAL 2.1500Screw On Head Standard Flute Standard Helix Carbide Uncoated Single End Corner Radius 0.1180 3.00MM MULTI-MASTER

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC5622622
Delivery date: 3-5 days
$167.04

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Package Size 1
Performance Rating High Performance
Shipping State Texas
Application Profile Milling, Slot Milling, Side Milling
Made In USA No
Dimensional Specifications
Corner Radius 0.1180 3.00MM
Cutter Dia 0.9844 25.00MM - 63/64
Overall Len 2.1500 54.61MM
Helix Angle 40°
Single/Double End Single End
Chamfer Angle 90.0°
Machine Side Connection Type Screw On
Flutes/Inserts 3
Cutter Style Carbide Bull Nose Finisher
Dimension Description 0.984 x 0.941 x 0.748 x 2.150
Cut Rating Aluminum, Graphite, Plastic
Tool Material Carbide
Inch/Metric Inch
Machine Side Connection Size 0.9410 23.90MM
End Of Tool Shape Corner Radius
Length Of Cut 0.7480 19.00MM
Length Type Standard
Cutting & Machining Properties
Center Cutting Yes
Cutting Edge Mat Carbide
Coolant Thru No
Industry-Specific Applications
Automotive Yes
Job Shop Yes
Aerospace Yes
Mold Yes
Agricultural YES
Energy Yes
Medical Yes
