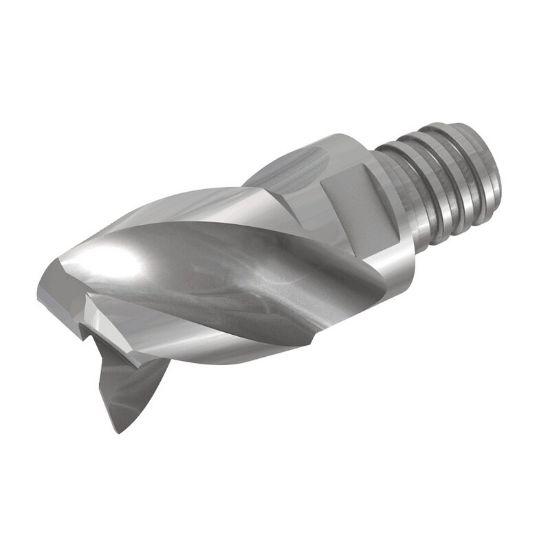

ISCAR MM EA200H20R0.0CF-3T12 IC08 DIA 20MM SH T12 LOC 0.7870 OAL 1.8820End Mill,Replacable Head Standard Flute Standard Helix Carbide Uncoated Single End Square Sharp MULTI-MASTER

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC5668963
Delivery date: 3-5 days
$155.44

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Made In USA No
Application Counterboring, Slot Milling, Face Milling, Shoulder Milling
Performance Rating High Performance
Shipping State Texas
Package Size 1
Dimensional Specifications
Cutter Dia 0.7874 20.00MM
Overall Len 1.8820 47.80MM
Length Type Standard
Dimension Description 0.787 x 0.726 x 0.787 x 1.882
Chamfer Angle 90.0°
Flutes/Inserts 3
Length Of Cut 0.7870 19.99MM
Machine Side Connection Type Screw On
End Of Tool Shape Square
Machine Side Connection Size T12
Cut Rating Aluminum, Graphite, Plastic
Tool Material Carbide
Cutter Style Carbide Finisher
Inch/Metric Inch
Helix Angle 40°
Single/Double End Single End
Cutting & Machining Properties
Coolant Thru No
Center Cutting Yes
Cutting Edge Mat Carbide
Industry-Specific Applications
Automotive Yes
Job Shop Yes
Medical Yes
Aerospace Yes
Mold Yes
Agricultural YES
Energy Yes
