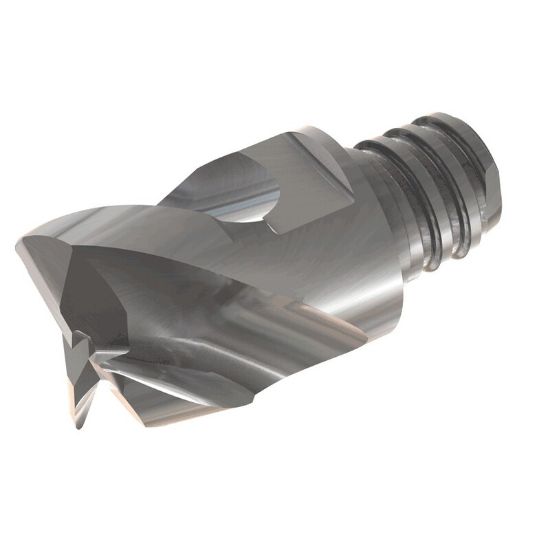

ISCAR MM EA200B12R3.0-3T12 IC08 DIA 20MM SH T12 LOC 0.4720 OAL 1.5470Screw On Head Standard Flute High Helix Carbide Uncoated Single End Corner Radius 0.1180 3.00MM MULTI-MASTER

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC5622754
Delivery date: 3-5 days
$130.69

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Performance Rating High Performance
Shipping State Texas
Application Side Milling, Slot Milling, Profile Millling
Made In USA No
Package Size 1
Dimensional Specifications
Cut Rating Aluminum, Graphite, Plastic
Tool Material Carbide
Machine Side Connection Type Screw On
Inch/Metric Inch
Overall Len 1.5470 39.29MM
Helix Angle 45°
Dimension Description 0.787 x 0.726 x 0.472 x 1.547
Machine Side Connection Size T12
Corner Radius 0.1180 3.00MM
End Of Tool Shape Corner Radius
Single/Double End Single End
Length Type Standard
Cutter Dia 0.7874 20.00MM
Length Of Cut 0.4724 12.00MM
Chamfer Angle 90.0°
Flutes/Inserts 3
Cutter Style Carbide Bull Nose Finisher
Cutting & Machining Properties
Cutting Edge Mat Carbide
Center Cutting Yes
Coolant Thru No
Industry-Specific Applications
Aerospace Yes
Automotive Yes
Job Shop Yes
Mold Yes
Agricultural YES
Medical Yes
Energy Yes
