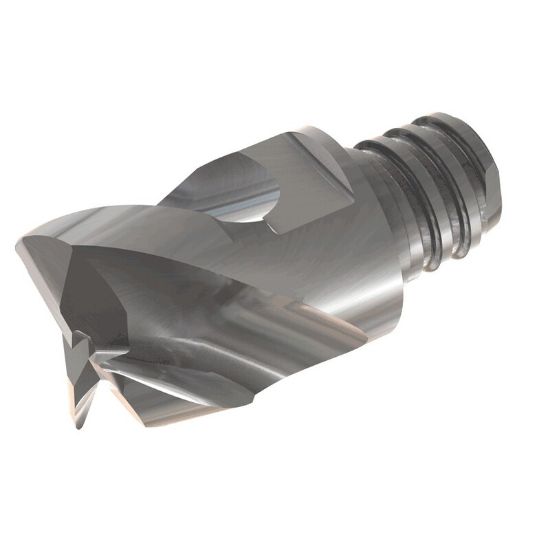

ISCAR MM EA200B12R1.0-3T12 IC08 DIA 20MM SH T12 LOC 0.4720 OAL 1.5470Screw On Head Standard Flute High Helix Carbide Uncoated Single End Corner Radius 0.0390 0.99MM MULTI-MASTER

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC5622017
Delivery date: 3-5 days
$122.19

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Application Profile Millling, Slot Milling, Side Milling
Made In USA No
Performance Rating High Performance
Package Size 1
Shipping State Texas
Dimensional Specifications
Helix Angle 45°
Cutter Dia 0.7874 20.00MM
Length Of Cut 0.4724 12.00MM
Length Type Standard
Corner Radius 0.0390 0.99MM
Cut Rating Aluminum, Graphite, Plastic
Machine Side Connection Type Screw On
Single/Double End Single End
End Of Tool Shape Corner Radius
Tool Material Carbide
Inch/Metric Inch
Dimension Description 0.787 x 0.726 x 0.472 x 1.547
Machine Side Connection Size T12
Overall Len 1.5470 39.29MM
Chamfer Angle 90.0°
Flutes/Inserts 3
Cutter Style Carbide Bull Nose Finisher
Cutting & Machining Properties
Coolant Thru No
Center Cutting Yes
Cutting Edge Mat Carbide
Industry-Specific Applications
Aerospace Yes
Automotive Yes
Job Shop Yes
Mold Yes
Agricultural YES
Energy Yes
Medical Yes
