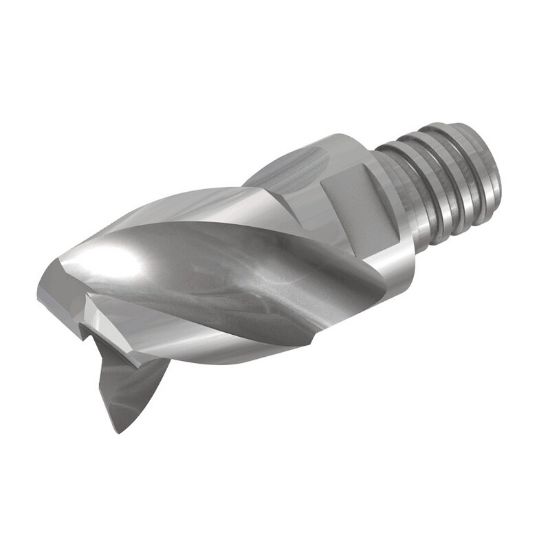

ISCAR MM EA160H16R2.5CF-3T10 IC08 DIA 16MM SH T10 LOC 0.6300 OAL 1.5650Screw On Head Standard Flute Standard Helix Carbide Uncoated Single End Corner Radius 0.0980 2.49MM MULTI-MASTER

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC5668962
Delivery date: 3-5 days
$134.56

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Application Side Milling, Profile Milling, Slot Milling
Made In USA No
Shipping State Texas
Package Size 1
Performance Rating High Performance
Dimensional Specifications
Chamfer Angle 90.0°
Cutter Dia 0.6299 16.00MM
Flutes/Inserts 3
Cutter Style Carbide Bull Nose Finisher
Length Type Standard
Corner Radius 0.0980 2.49MM
Tool Material Carbide
Inch/Metric Inch
Machine Side Connection Size T10
Helix Angle 40°
Dimension Description 0.630 x 0.602 x 0.630 x 1.565
Overall Len 1.5650 39.75MM
Length Of Cut 0.6300 16.00MM
End Of Tool Shape Corner Radius
Single/Double End Single End
Cut Rating Aluminum, Graphite, Plastic
Machine Side Connection Type Screw On
Cutting & Machining Properties
Cutting Edge Mat Carbide
Coolant Thru No
Center Cutting Yes
Industry-Specific Applications
Agricultural YES
Aerospace Yes
Automotive Yes
Job Shop Yes
Mold Yes
Medical Yes
Energy Yes
