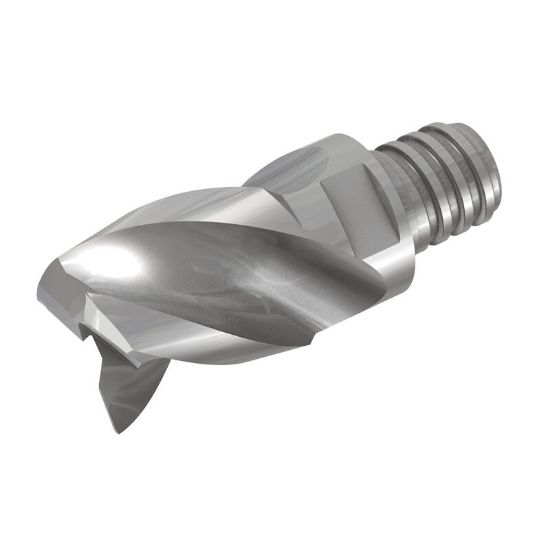

ISCAR MM EA160H16R0.2CF-3T10 IC08 DIA 16MM SH T10 LOC 0.6300 OAL 1.5650Screw On Head Standard Flute Standard Helix Carbide Uncoated Single End Corner Radius 0.0080 0.20MM MULTI-MASTER

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC5623052
Delivery date: 3-5 days
$134.56

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Application Profile Milling, Slot Milling, Side Milling
Performance Rating High Performance
Package Size 1
Shipping State Texas
Made In USA No
Dimensional Specifications
Dimension Description 0.630 x 0.602 x 0.630 x 1.565
End Of Tool Shape Corner Radius
Machine Side Connection Type Screw On
Cutter Style Carbide Bull Nose Finisher
Corner Radius 0.0080 0.20MM
Machine Side Connection Size T10
Overall Len 1.5650 39.75MM
Length Of Cut 0.6300 16.00MM
Helix Angle 40°
Single/Double End Single End
Cut Rating Aluminum, Graphite, Plastic
Tool Material Carbide
Inch/Metric Inch
Chamfer Angle 90.0°
Cutter Dia 0.6299 16.00MM
Flutes/Inserts 3
Length Type Standard
Cutting & Machining Properties
Center Cutting Yes
Cutting Edge Mat Carbide
Coolant Thru No
Industry-Specific Applications
Automotive Yes
Job Shop Yes
Medical Yes
Agricultural YES
Energy Yes
Aerospace Yes
Mold Yes
