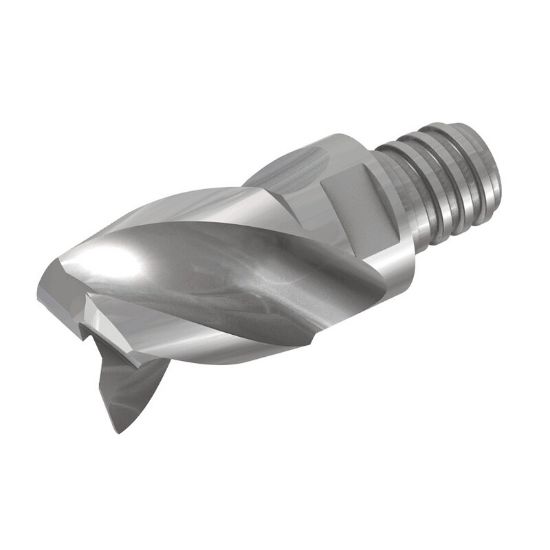

ISCAR MM EA120H12R0.2CF-3T08 IC08 DIA 12MM SH T08 LOC 0.4720 OAL 1.2180Screw On Head Standard Flute Standard Helix Carbide Uncoated Single End Corner Radius 0.0080 0.20MM MULTI-MASTER

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC5623051
Delivery date: 3-5 days
$84.29

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Performance Rating High Performance
Application Side Milling, Profile Milling, Slot Milling
Made In USA No
Package Size 1
Shipping State Texas
Dimensional Specifications
Cut Rating Aluminum, Graphite, Plastic
Machine Side Connection Type Screw On
Machine Side Connection Size T08
Dimension Description 0.472 x 0.461 x 0.472 x 1.218
Chamfer Angle 90.0°
Cutter Dia 0.4724 12.00MM
Flutes/Inserts 3
Cutter Style Carbide Bull Nose Finisher
Overall Len 1.2180 30.94MM
Length Of Cut 0.4724 12.00MM
Length Type Standard
End Of Tool Shape Corner Radius
Single/Double End Single End
Corner Radius 0.0080 0.20MM
Helix Angle 40°
Tool Material Carbide
Inch/Metric Inch
Cutting & Machining Properties
Center Cutting Yes
Coolant Thru No
Cutting Edge Mat Carbide
Industry-Specific Applications
Aerospace Yes
Automotive Yes
Job Shop Yes
Mold Yes
Medical Yes
Energy Yes
Agricultural YES
