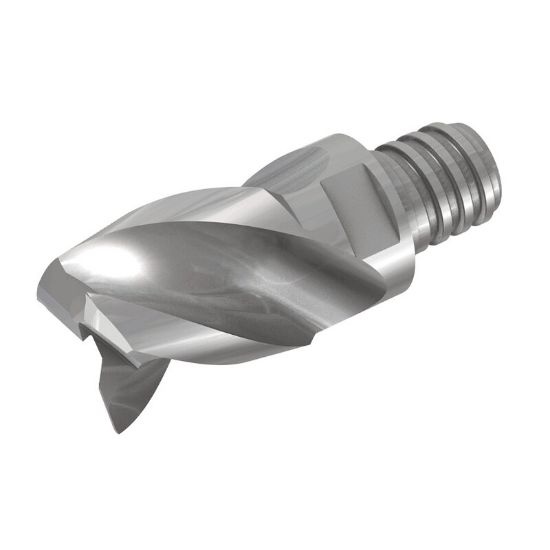

ISCAR MM EA100H10R0CF-4T06 IC08 DIA 10MM SH T06 LOC 0.3940 OAL 1.0100End Mill,Replacable Head Standard Flute Standard Helix Carbide Uncoated Single End Square Sharp MULTI-MASTER

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC5667106
Delivery date: 3-5 days
$73.78

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Performance Rating High Performance
Shipping State Texas
Application Counterboring, Face Milling, Shoulder Milling, Slot Milling
Made In USA No
Package Size 1
Dimensional Specifications
Cut Rating Aluminum, Graphite, Plastic
Tool Material Carbide
Machine Side Connection Type Screw On
Length Of Cut 0.3940 10.01MM
End Of Tool Shape Square
Cutter Style Carbide Finisher
Inch/Metric Inch
Cutter Dia 0.3937 10.00MM
Single/Double End Single End
Dimension Description 0.394 x 0.378 x 0.394 x 1.010
Length Type Standard
Flutes/Inserts 4
Helix Angle 40°
Chamfer Angle 90.0°
Machine Side Connection Size T06
Overall Len 1.0100 25.65MM
Cutting & Machining Properties
Cutting Edge Mat Carbide
Center Cutting Yes
Coolant Thru No
Industry-Specific Applications
Aerospace Yes
Automotive Yes
Job Shop Yes
Mold Yes
Agricultural YES
Medical Yes
Energy Yes
