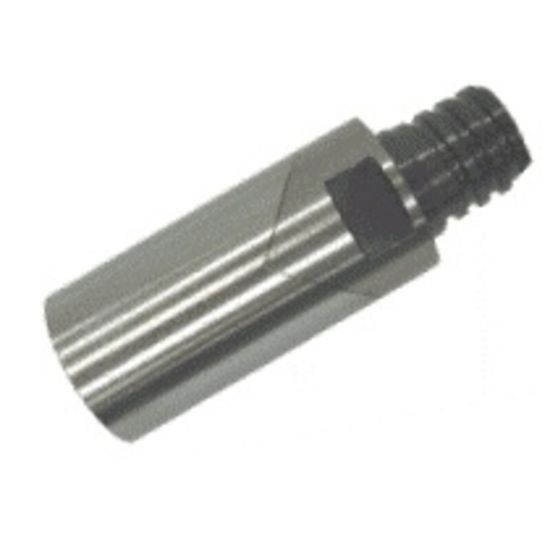

ISCAR MM CAB T10T10-38/1.5-C SH T10 OAL 1.50 Replacable Head Acc. Straight Shank Carbide Single End MULTI-MASTER

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC3199244
Delivery date: 3-5 days
$402.24

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Performance Rating High Performance
Application Circle Segment, Groove Milling, Profile Milling, Slot Milling, Side Milling, Dovetail Milling, Face Milling, Copy Milling, Feed Milling
Made In USA No
Package Size 1
Shipping State Texas
Dimensional Specifications
Machine Side Connection Type Screw On
Overall Len 1.5000 38.10MM
Cutter Style Screw On Extention
Length Type Standard
Machine Side Connection Size T10
Single/Double End Single End
Shank/Pilot Dia T10
Inch/Metric Inch
Cutting & Machining Properties
Cutting Edge Mat Carbide
Coolant Thru No
Center Cutting No
Industry-Specific Applications
Automotive Yes
Job Shop Yes
Medical Yes
Aerospace Yes
Mold Yes
Agricultural YES
Energy Yes
