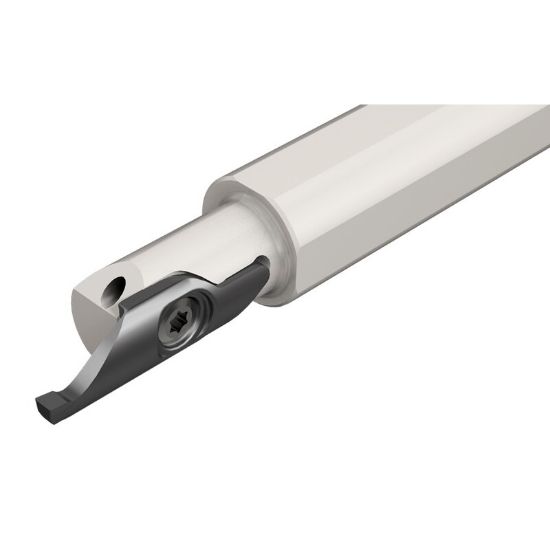

Picture of ISCAR MIFHR 15.9C-10 Face Grooving Boring Bar 0.625 Tool

ISCAR MIFHR 15.9C-10 Face Grooving Boring Bar 0.625 Tool

ANSI: MIFHR 15.9C-10

ISO: MIFHR 15.9C-10

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC2801890
Delivery date: 3-5 days
$224.64

Details

Bars for face and internal grooving undercutting and threading applications. They carry screw clamped MINCUT inserts into a long pocket, providing a very rigid clamping. The tools have coolant holes.

Products specifications
Attribute name Attribute value
General Product Information
Insert Application General Purpose
Made In USA No
Shipping State Texas
Package Size 1
Insert/Tool Tool
Application Face Grooving
Insert Type Positive
Dimensional Specifications
Machine Side Connection Type Boring Bar
Overall Len 3.5430 89.99MM
Insert Size Ic 10
Tool Material Steel
Shank/Pilot Dia 0.6250 15.88MM - 5/8
Machine Side Connection Size 0.6250 15.88MM
Cutting & Machining Properties
Inter/Extern Internal
Insert Style MI
Insert Shape/Cutter Pocket Shape Other
Hand R/L Right
