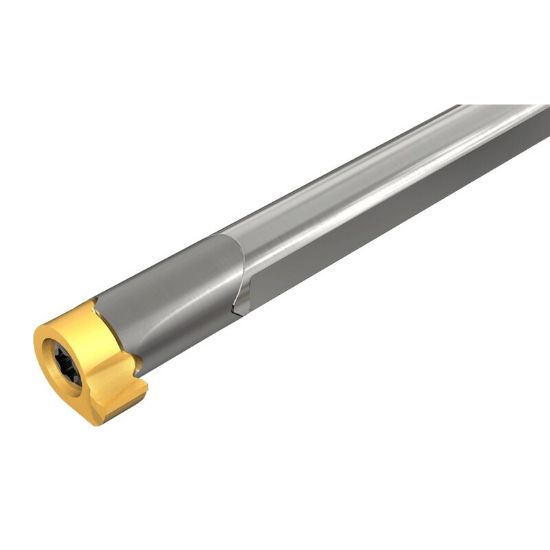

Picture of ISCAR MGCH 06C Grooving,Groove Turning Boring Bar 0.236 Tool

ISCAR MGCH 06C Grooving,Groove Turning Boring Bar 0.236 Tool

ANSI: MGCH 06C

ISO: MGCH 06C

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC2801658
Delivery date: 3-5 days
$227.52

Important Notes

The same tool applies on right and left machining

Details

Int. Back Boring and Profiling Int. Boring and Profiling Int. Groove & Turn Int. Grooving Threading (Int.)

CHAMGROOVE solid carbide bars for internal grooving, turning and threading, DMIN .315".

Products specifications
Attribute name Attribute value
General Product Information
Application Int.Groove Turning, Swiss, Int.Grooving
Insert Application General Purpose
Made In USA No
Insert/Tool Tool
Insert Type Positive
Package Size 1
Shipping State Texas
Dimensional Specifications
Insert Size Ic 8
Depth Of Cut Max 0.0590
Machine Side Connection Type Boring Bar
Machine Side Connection Size 0.2362 6.00MM
Overall Len 2.4410 62.00MM
Cutting Width 0.0200 0.51MM
Tool Material Carbide
Shank/Pilot Dia 0.2362 6.00MM
Cutting & Machining Properties
Inter/Extern Internal
Insert Shape/Cutter Pocket Shape Other
Insert Style GI
