  • ISCAR MF FHX D4.00-09-1.50-R06 Milling Cutter Feed Mill 4.000 Diameter Face Mill 1.500 2.000 OAL 9 Flute

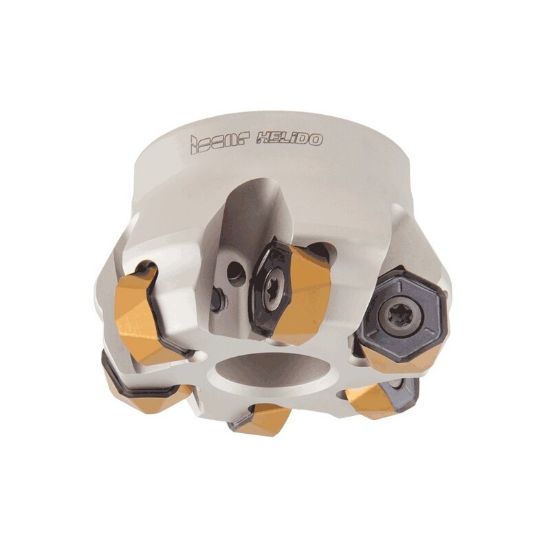

Picture of ISCAR MF FHX D4.00-09-1.50-R06 Milling Cutter Feed Mill 4.000 Diameter Face Mill 1.500 2.000 OAL 9 Flute

ISCAR MF FHX D4.00-09-1.50-R06 Milling Cutter Feed Mill 4.000 Diameter Face Mill 1.500 2.000 OAL 9 Flute

ANSI: MF FHX D4.00-09-1.50-R06

ISO: MF FHX D4.00-09-1.50-R06

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC3107210
Delivery date: 3-5 days
$1,238.40

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Application Feed Milling, Face Milling, Slot Milling, Copy Milling, Ramp Milling
Shipping State Texas
Package Size 1
Insert/Tool Tool
Insert Application General Purpose
Insert Type Negative
Made In USA No
Dimensional Specifications
Depth Of Cut Max 0.1180
Cutter Dia 4.0000 101.60MM
Insert Size Ic 6
Machine Side Connection Size 1.5000 38.10MM
Cut Dia Min 3.6200 91.95MM
Tool Material Steel
Flutes/Inserts 9
Cut Dia Max 4.0900 103.89MM
Machine Side Connection Type Face Mill/Shell Mill
Overall Len 2.0000 50.80MM
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Square
Coolant Thru Yes
Insert Style H
Cool Sply Type Through Hole
Fasteners & Connectors
Insert Screw 7000229
