  • ISCAR MF EWXD1.50-4-3.5W1.25-07 Milling Cutter Feed Mill 1.020 Diameter Weldon 1.250 6.000 OAL 4 Flute

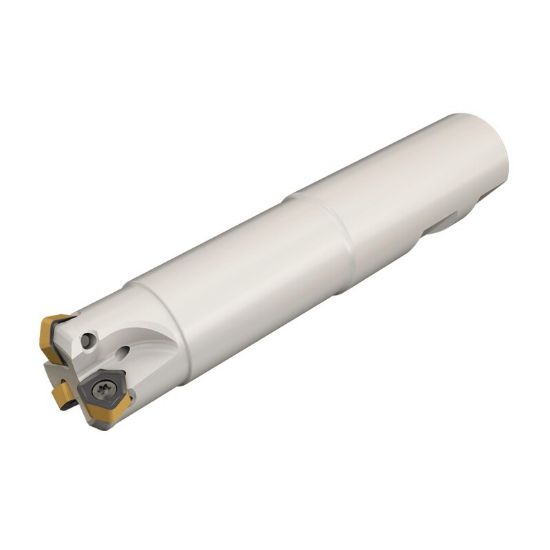

Picture of ISCAR MF EWXD1.50-4-3.5W1.25-07 Milling Cutter Feed Mill 1.020 Diameter Weldon 1.250 6.000 OAL 4 Flute

ISCAR MF EWXD1.50-4-3.5W1.25-07 Milling Cutter Feed Mill 1.020 Diameter Weldon 1.250 6.000 OAL 4 Flute

ANSI: MF EWXD1.50-4-3.5W1.25-07

ISO: MF EWXD1.50-4-3.5W1.25-07

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC3107066
Delivery date: 3-5 days
$516.48

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert Application General Purpose
Insert Type Negative
Made In USA No
Application Ramp Milling, Slot Milling, Copy Milling, Feed Milling, Face Milling
Insert/Tool Tool
Shipping State Texas
Package Size 1
Dimensional Specifications
Flutes/Inserts 4
Overall Len 6.0000 152.40MM
Shank/Pilot Dia 1.2500 31.75MM - 1-1/4
Cutter Dia 1.0200 25.91MM
Insert Size Ic 7
Cut Dia Max 1.5000 38.10MM - 1-1/2
Depth Of Cut Max 0.0400
Tool Material Steel
Machine Side Connection Size 1.2500 31.75MM
Machine Side Connection Type Weldon
Cut Dia Min 1.0200 25.91MM
Cutting & Machining Properties
Cool Sply Type Through Hole
Coolant Thru Yes
Insert Shape/Cutter Pocket Shape Trigon
Insert Style WX
Max Ramp Angle 2.20°
Fasteners & Connectors
Insert Screw 7000229
