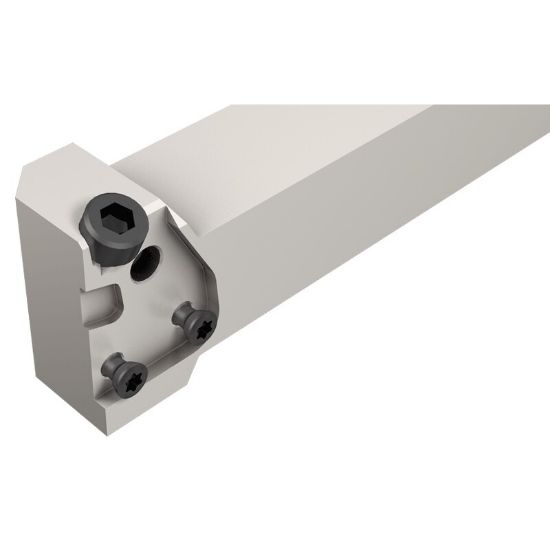

Picture of ISCAR MAHR 38.1 Cut Off,Grooving,Groove Turning Adapter Holder 1.500 Tool

ISCAR MAHR 38.1 Cut Off,Grooving,Groove Turning Adapter Holder 1.500 Tool

ANSI: MAHR 38.1

ISO: MAHR 38.1

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC2861075
Delivery date: 3-5 days
$266.88

Important Notes

For Tmax, refer to the adapters data

Details

MODULAR-GRIP adapter holders for all GRIP systems.

Products specifications
Attribute name Attribute value
General Product Information
Package Size 1
Insert Application General Purpose
Made In USA No
Insert/Tool Tool
Application Ext.Grooving, Parting, Ext.Groove Turning
Shipping State Texas
Insert Type Positive
Dimensional Specifications
Machine Side Connection Size 1.5000 38.10MM
Overall Len 6.6000 167.64MM
Tool Material Steel
Machine Side Connection Type Stick Tool
Shank/Pilot Dia 1.5000 38.10MM - 1-1/2
Cutting & Machining Properties
Inter/Extern External
Insert Shape/Cutter Pocket Shape Other
