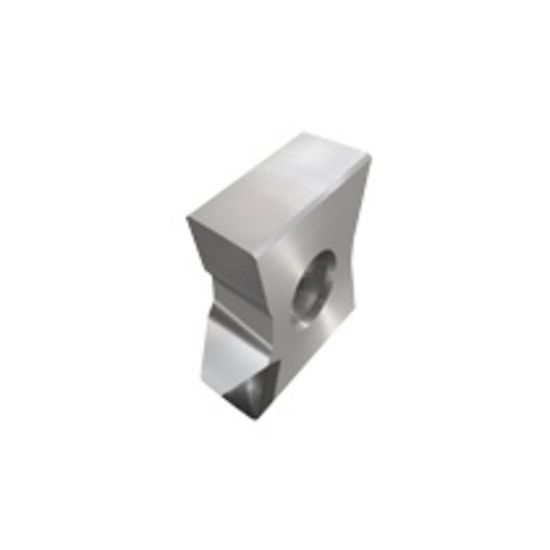

Picture of ISCAR LNAW1506PNTR-S IB55 Milling Insert On Edge 0.031 Corner Radius

ISCAR LNAW1506PNTR-S IB55 Milling Insert On Edge 0.031 Corner Radius

ANSI: LNAW1506PNTR-S IB55

ISO: LNAW1506PNTR-S IB55

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC5604071
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Cutting Edge Definition

Polycrystalline cbn is a highly durable material, similar to diamond in its composition and properties. It can process a wide variety of materials, from steel and cast iron to alloys of high strength and hardness. In addition, PCBN can resist oxidation at high temperatures. These properties make it ideal for cutting tools.

Grade and Coating Description

A PCBN grade, suitable for finishing operations on hardened steels 45-65 HRC and nodular cast iron under continuous conditions and light interrupted cuts.

Products specifications
Attribute name Attribute value
General Product Information
Insert Type Negative
Made In USA No
Insert/Tool Insert
Application Milling Insert
Package Size 10
Insert Application Semi Finishing, Roughing
Shipping State Texas
Grade IB55
Dimensional Specifications
Insert Size Ic 15
Corner Radius 0.0310 0.79MM
Cut Rating >50HRC Steel, Ductile Iron, Gray Iron, Graphite
Depth Of Cut Max 0.1970
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Rectagonal
Insert Style LN
Cutting Edge Mat CBN
