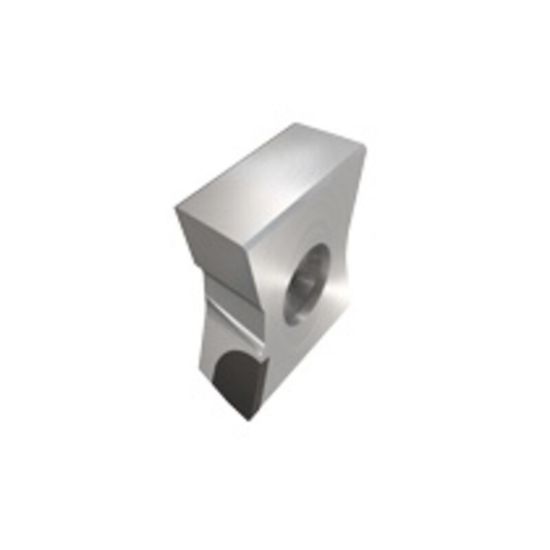

Picture of ISCAR LNAR150604PN-R-S ID5 Milling Insert On Edge 0.016 Corner Radius

ISCAR LNAR150604PN-R-S ID5 Milling Insert On Edge 0.016 Corner Radius

ANSI: LNAR150604PN-R-S ID5

ISO: LNAR150604PN-R-S ID5

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC5604757
Delivery date: 3-5 days
$141.12

Cutting Edge Definition

PCD stands for “Poly Crystalline Diamond”, the hardest available cutting material. PCD is a synthetic diamond produced by sintering together selected diamond particles with a metal matrix at high temperature and high pressure. The result is 90-95% diamond content material that reaches a hardness close to 6000 HV. In addition, the small amount of the binder gives the material additional toughness that makes it an efficient cutting material.

Grade and Coating Description

A PCD brazed tip, suitable for machining aluminum alloys (Si < 12%) and other non-ferrous materials. Features very high wear resistance with high toughness. Suitable for finishing operations and can be used for semi roughing operations and interrupted cuts.

Products specifications
Attribute name Attribute value
General Product Information
Package Size 10
Insert Type Negative
Insert Application Roughing, Semi Finishing
Made In USA No
Insert/Tool Insert
Application Milling Insert
Shipping State Texas
Grade ID5
Dimensional Specifications
Insert Size Ic 15
Corner Radius 0.0160 0.41MM
Cut Rating Aluminum, Gray Iron, High Temp
Depth Of Cut Max 0.1970
Cutting & Machining Properties
Cutting Edge Mat PCD
Insert Style LN
Insert Shape/Cutter Pocket Shape Rectagonal
