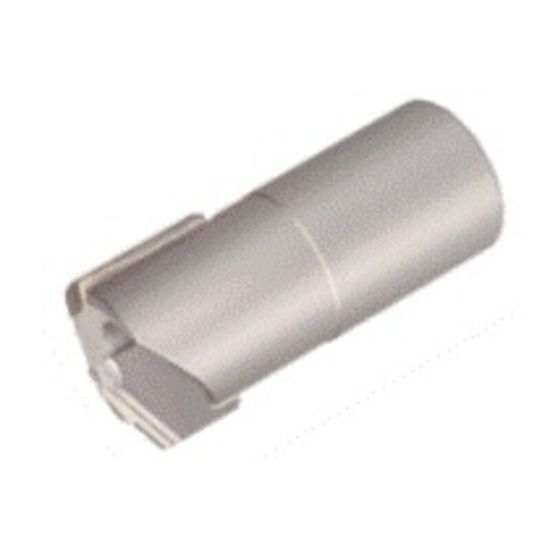

ISCAR ISD-I1 .611-.629 NOM 0 0.611" Deep Single Tube Drill s with Internal Single Start Thread and a Brazed Tip (.571-2.559 dia.)

ISO: ISD-I1 .611-.629 NOM 0

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC4880037
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Package Size 1
Shipping State Texas
Application Gun Drilling, Deep Hole Drilling
Made In USA No
Dimensional Specifications
Cutter Dia 0.6110 15.52MM
Shank/Pilot Dia 0.4882 12.40MM
Cut Dia Min 0.6110 15.52MM
Cut Dia Max 0.6300 16.00MM
Tool Material Carbide
Overall Len 2.1500 54.61MM
Flutes/Inserts 1
Cutting & Machining Properties
Connection TS-O2
Cutting Edge Mat Carbide
Coolant Thru Yes
Industry-Specific Applications
Job Shop Yes
