  • ISCAR ISD-I1 .571-.590 NOM 2 0.571" Deep Single Tube Drill s with Internal Single Start Thread and a Brazed Tip (.571-2.559 dia.)

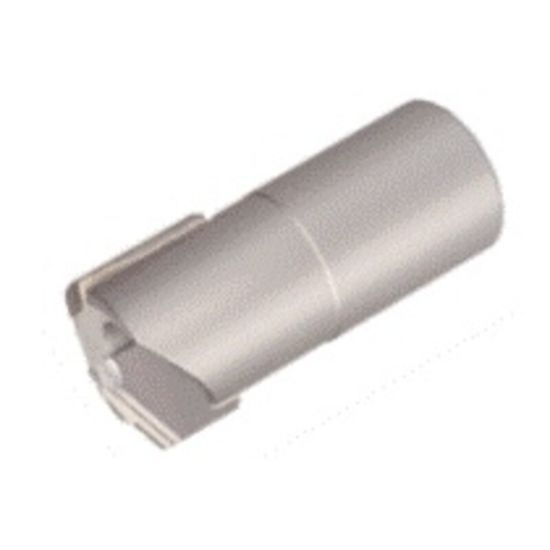

Picture of ISCAR ISD-I1 .571-.590 NOM 2 0.571" Deep Single Tube Drill s with Internal Single Start Thread and a Brazed Tip (.571-2.559 dia.)

ISCAR ISD-I1 .571-.590 NOM 2 0.571" Deep Single Tube Drill s with Internal Single Start Thread and a Brazed Tip (.571-2.559 dia.)

ISO: ISD-I1 .571-.590 NOM 2

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC4880300
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Cutting Edge Definition

Tool steel is any of various carbon steels and alloy steels that are particularly well-suited to be made into tools and tooling, including cutting tools, dies, hand tools, knives, and others.

Products specifications
Attribute name Attribute value
General Product Information
Package Size 1
Shipping State Texas
Application Gun Drilling, Deep Hole Drilling
Made In USA No
Dimensional Specifications
Tool Material Steel
Cutter Dia 0.5709 14.50MM
Cut Dia Min 0.5709 14.50MM
Flutes/Inserts 1
Shank/Pilot Dia 0.4531 11.51MM - 29/64
Cut Dia Max 0.5910 15.01MM
Machine Side Connection Type Cylindrical
Machine Side Connection Size 0.4531 11.51MM
Overall Len 2.1340 54.20MM
Cutting & Machining Properties
Cutting Edge Mat Steel
Connection TS-O0
Coolant Thru Yes
Industry-Specific Applications
Job Shop Yes
