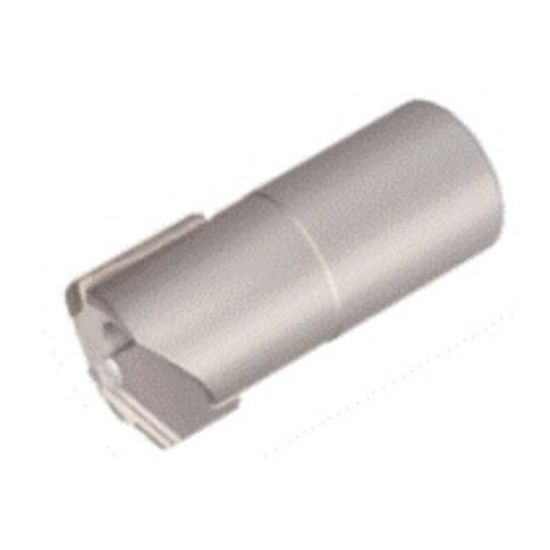

ISCAR ISD-I1 2.244-2.401 NOM 0 2.244" Deep Single Tube Drill s with Internal Single Start Thread and a Brazed Tip (.571-2.559 dia.)

ISO: ISD-I1 2.244-2.401 NOM 0

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC4880051
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Shipping State Texas
Made In USA No
Package Size 1
Application Deep Hole Drilling, Gun Drilling
Dimensional Specifications
Cut Dia Min 2.2441 57.00MM
Tool Material Carbide
Shank/Pilot Dia 1.9290 49.00MM
Cutter Dia 2.2441 57.00MM
Overall Len 4.1300 104.90MM
Flutes/Inserts 1
Cut Dia Max 2.4010 60.99MM
Cutting & Machining Properties
Connection TS-O20
Cutting Edge Mat Carbide
Coolant Thru Yes
Industry-Specific Applications
Job Shop Yes
