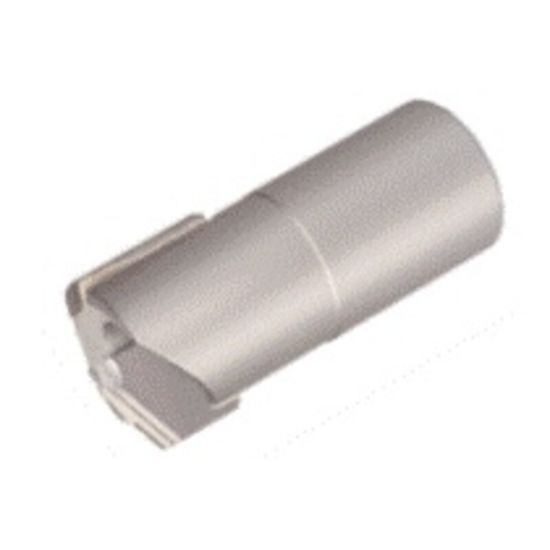

ISCAR ISD-I1 1.457-1.574 NOM 0 1.457" Deep Single Tube Drill s with Internal Single Start Thread and a Brazed Tip (.571-2.559 dia.)

ISO: ISD-I1 1.457-1.574 NOM 0

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC4880046
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Application Deep Hole Drilling, Gun Drilling
Package Size 1
Made In USA No
Shipping State Texas
Dimensional Specifications
Cutter Dia 1.4567 37.00MM
Overall Len 3.5980 91.39MM
Cut Dia Max 1.5740 39.98MM
Shank/Pilot Dia 1.1811 30.00MM
Flutes/Inserts 1
Cut Dia Min 1.4567 37.00MM
Tool Material Carbide
Cutting & Machining Properties
Cutting Edge Mat Carbide
Connection TS-O15
Coolant Thru Yes
Industry-Specific Applications
Job Shop Yes
