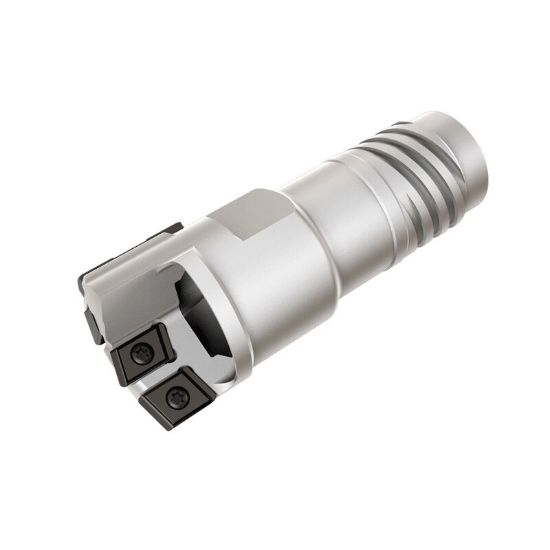

Picture of ISCAR ISD-EF 1.693-1.850-FB 1.693" Deep Single Tube Drill s with External 4 Start Thread for High Feed (.984-2.559 dia.)

ISCAR ISD-EF 1.693-1.850-FB 1.693" Deep Single Tube Drill s with External 4 Start Thread for High Feed (.984-2.559 dia.)

ISO: ISD-EF 1.693-1.850-FB

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC4841134
Delivery date: 3-5 days
$708.37

Cutting Edge Definition

Tool steel is any of various carbon steels and alloy steels that are particularly well-suited to be made into tools and tooling, including cutting tools, dies, hand tools, knives, and others.

Products specifications
Attribute name Attribute value
General Product Information
Made In USA No
Application Deep Hole Drilling, Gun Drilling
Shipping State Texas
Package Size 1
Dimensional Specifications
Overall Len 3.9370 100.00MM
Cut Dia Max 1.8500 46.99MM
Cutter Dia 1.6930 43.00MM
Flutes/Inserts 2
Cut Dia Min 1.6930 43.00MM
Tool Material Steel
Shank/Pilot Dia 1.4170 35.99MM
Cutting & Machining Properties
Coolant Thru Yes
Connection TS-I13
Cutting Edge Mat Steel
Industry-Specific Applications
Job Shop Yes
