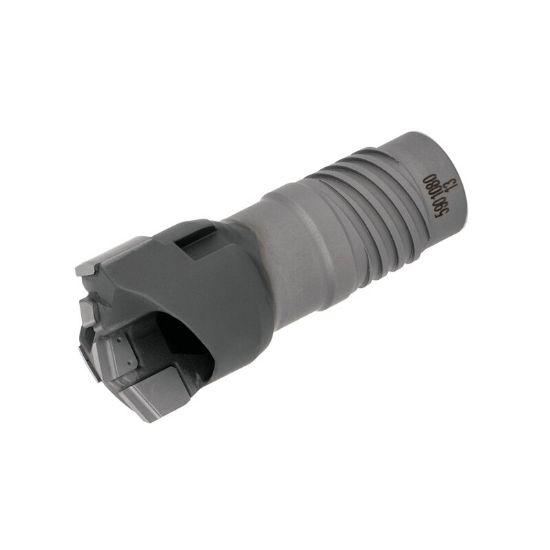

ISCAR ISD-E3 2.386-2.559 NOM 0 2.386" Deep Single Tube Drill s with External 2 and 4 Start Thread and 2 or 3 Brazed Tips (.496-2.559 dia.)

ISO: ISD-E3 2.386-2.559 NOM 0

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC4880035
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Application Deep Hole Drilling, Gun Drilling
Package Size 1
Shipping State Texas
Made In USA No
Dimensional Specifications
Overall Len 3.3070 84.00MM
Flutes/Inserts 1
Cut Dia Min 2.3858 60.60MM
Shank/Pilot Dia 1.8500 46.99MM
Cutter Dia 2.3858 60.60MM
Tool Material Carbide
Cut Dia Max 2.5590 65.00MM
Cutting & Machining Properties
Cutting Edge Mat Carbide
Coolant Thru Yes
Connection TS-I17
Industry-Specific Applications
Job Shop Yes
