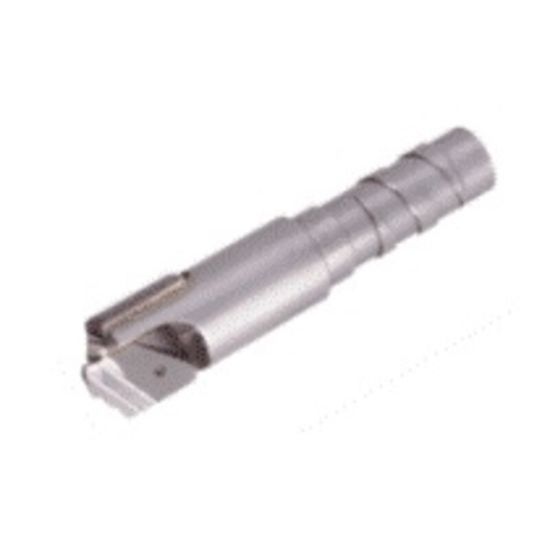

ISCAR ISD-E0 .394-.432 NOM 0 0.394" Deep Single Tube Drill s with External Single Thread Connection and a Brazed Single Tip (.315-.582 dia.)

ISO: ISD-E0 .394-.432 NOM 0

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC4880011
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Application Deep Hole Drilling, Gun Drilling
Made In USA No
Package Size 1
Shipping State Texas
Dimensional Specifications
Cut Dia Min 0.3937 10.00MM
Machine Side Connection Size 0.3937 10.00MM
Overall Len 1.3860 35.20MM
Cut Dia Max 0.4330 11.00MM
Flutes/Inserts 2
Cutter Dia 0.3937 10.00MM
Tool Material Carbide
Shank/Pilot Dia 0.3937 10.00MM
Cutting & Machining Properties
Coolant Thru Yes
Connection TS003
Cutting Edge Mat Carbide
Industry-Specific Applications
Job Shop Yes
