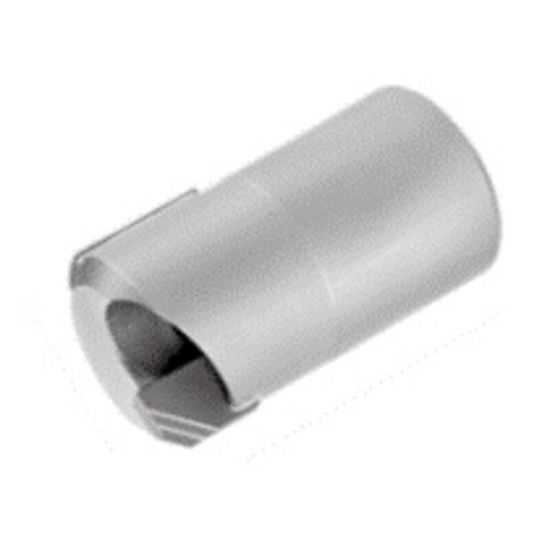

ISCAR ISC-I1 .650-.679 NOM 0 0.65" Deep Single Tube Counterbore with Through Hole, Internal Single Start Thread and a Brazed Tip (.571-2.559 dia.)

ISO: ISC-I1 .650-.679 NOM 0

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC4880069
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Package Size 1
Shipping State Texas
Application Gun Drilling, Deep Hole Drilling
Made In USA No
Dimensional Specifications
Cut Dia Min 0.6496 16.50MM
Flutes/Inserts 1
Cut Dia Max 0.6790 17.25MM
Tool Material Carbide
Cutter Dia 0.6496 16.50MM
Overall Len 2.0470 51.99MM
Shank/Pilot Dia 0.5280 13.41MM
Cutting & Machining Properties
Cutting Edge Mat Carbide
Connection TS-O4
Coolant Thru Yes
Industry-Specific Applications
Job Shop Yes
