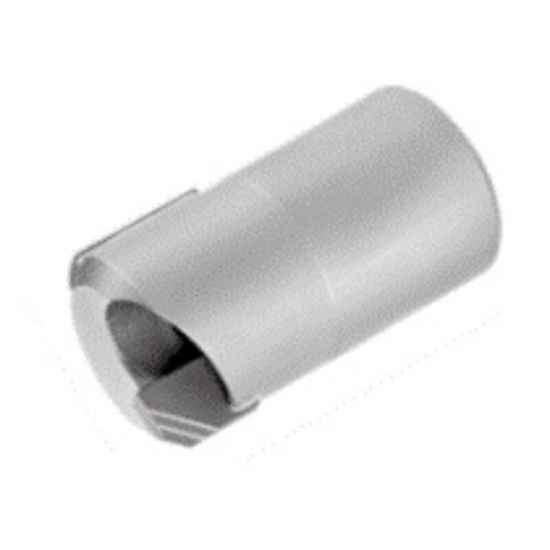

ISCAR ISC-I1 .571-.590 NOM 0 0.571" Deep Single Tube Counterbore with Through Hole, Internal Single Start Thread and a Brazed Tip (.571-2.559 dia.)

ISO: ISC-I1 .571-.590 NOM 0

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC4880116
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Made In USA No
Application Deep Hole Drilling, Gun Drilling
Shipping State Texas
Package Size 1
Dimensional Specifications
Flutes/Inserts 1
Shank/Pilot Dia 0.4531 11.51MM - 29/64
Machine Side Connection Size 0.4531 11.51MM
Overall Len 2.0470 51.99MM
Cut Dia Max 0.5910 15.01MM
Tool Material Carbide
Machine Side Connection Type Cylindrical
Cutter Dia 0.5709 14.50MM
Cut Dia Min 0.5709 14.50MM
Cutting & Machining Properties
Connection TS-O0
Coolant Thru Yes
Cutting Edge Mat Carbide
Industry-Specific Applications
Job Shop Yes
