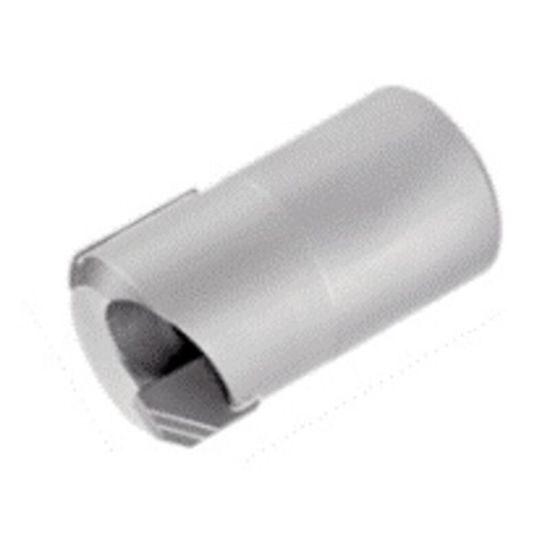

ISCAR ISC-I1 1.851-2.046 NOM 0 1.85" Deep Single Tube Counterbore with Through Hole, Internal Single Start Thread and a Brazed Tip (.571-2.559 dia.)

ISO: ISC-I1 1.851-2.046 NOM 0

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC4880079
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Application Deep Hole Drilling, Gun Drilling
Made In USA No
Package Size 1
Shipping State Texas
Dimensional Specifications
Cut Dia Min 1.8504 47.00MM
Overall Len 3.5430 89.99MM
Cutter Dia 1.8504 47.00MM
Shank/Pilot Dia 1.6140 41.00MM
Flutes/Inserts 1
Cut Dia Max 2.0470 51.99MM
Tool Material Carbide
Cutting & Machining Properties
Cutting Edge Mat Carbide
Coolant Thru Yes
Connection TS-O18
Industry-Specific Applications
Job Shop Yes
