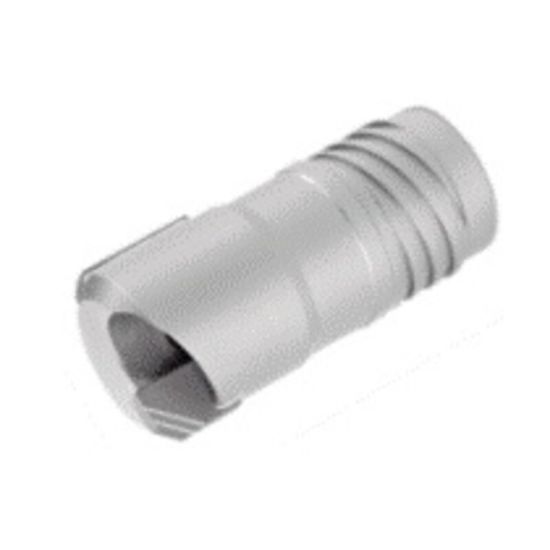

ISCAR ISC-E1 1.426-1.559 NOM 0 1.426" Deep Single Tube Counterbore with Through Hole, External 4 Start Thread and a Brazed Tip (.744-2.559 dia.)

ISO: ISC-E1 1.426-1.559 NOM 0

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC4880061
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Application Gun Drilling, Deep Hole Drilling
Made In USA No
Package Size 1
Shipping State Texas
Dimensional Specifications
Overall Len 3.2280 81.99MM
Cut Dia Min 1.4252 36.20MM
Shank/Pilot Dia 1.1811 30.00MM
Cut Dia Max 1.5315 38.90MM
Cutter Dia 1.4252 36.20MM
Flutes/Inserts 1
Tool Material Carbide
Cutting & Machining Properties
Connection TS-I11
Coolant Thru Yes
Cutting Edge Mat Carbide
Industry-Specific Applications
Job Shop Yes
