  • ISCAR IQ845 FSYD2.5-07-1.00-R07 Milling Cutter 45.0° 2.500 Diameter Face Mill 1.000 1.750 OAL 7 Flute

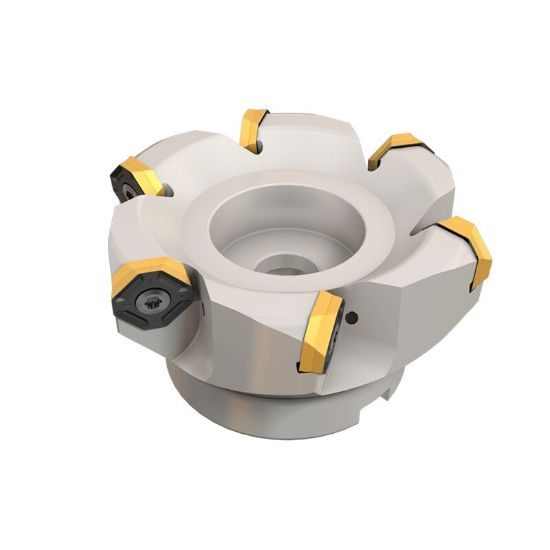

Picture of ISCAR IQ845 FSYD2.5-07-1.00-R07 Milling Cutter 45.0° 2.500 Diameter Face Mill 1.000 1.750 OAL 7 Flute

ISCAR IQ845 FSYD2.5-07-1.00-R07 Milling Cutter 45.0° 2.500 Diameter Face Mill 1.000 1.750 OAL 7 Flute

ANSI: IQ845 FSYD2.5-07-1.00-R07

ISO: IQ845 FSYD2.5-07-1.00-R07

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC3106548
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert Type Negative
Insert Application Roughing, Finishing, Semi Finishing
Made In USA No
Application Face Milling
Package Size 1
Shipping State Texas
Insert/Tool Tool
Dimensional Specifications
Tool Material Steel
Depth Of Cut Max 0.1810
Machine Side Connection Type Face Mill/Shell Mill
Insert Size Ic 7
Cut Dia Min 2.5000 63.50MM - 2-1/2
Cut Dia Max 2.8700 72.90MM
Flutes/Inserts 7
Machine Side Connection Size 1.0000 25.40MM
Overall Len 1.7500 44.45MM
Cutter Dia 2.5000 63.50MM - 2-1/2
Cutting & Machining Properties
Cool Sply Type Through Hole
Insert Style SY
Insert Shape/Cutter Pocket Shape Square
Coolant Thru Yes
Fasteners & Connectors
Insert Screw 7006097
