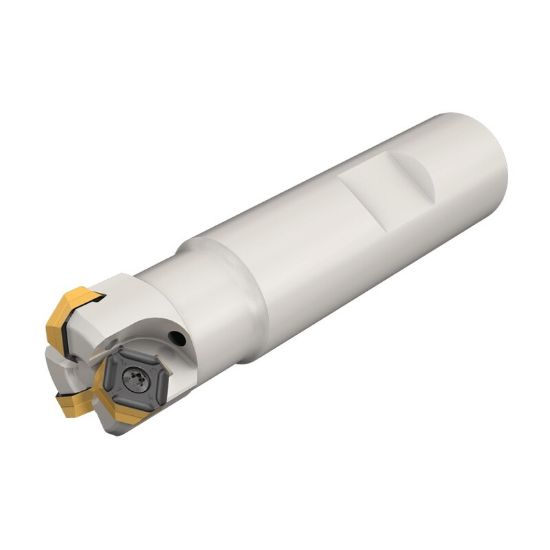

Picture of ISCAR IQ845 ESYD1.25-5W1.25-R05 Milling Cutter 50.0° 1.250 Diameter Weldon 1.250 4.000 OAL 5 Flute

ISCAR IQ845 ESYD1.25-5W1.25-R05 Milling Cutter 50.0° 1.250 Diameter Weldon 1.250 4.000 OAL 5 Flute

ANSI: IQ845 ESYD1.25-5W1.25-R05

ISO: IQ845 ESYD1.25-5W1.25-R05

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC3106695
Delivery date: 3-5 days
$455.04

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert Application General Purpose
Insert Type Negative
Made In USA No
Shipping State Texas
Package Size 1
Insert/Tool Tool
Application Chamfering
Dimensional Specifications
Shank/Pilot Dia 1.2500 31.75MM - 1-1/4
Cut Dia Min 1.2500 31.75MM - 1-1/4
Machine Side Connection Type Weldon
Overall Len 4.0000 101.60MM
Insert Size Ic 5
Depth Of Cut Max 0.1020
Tool Material Steel
Machine Side Connection Size 1.2500 31.75MM
Flutes/Inserts 5
Cutter Dia 1.2500 31.75MM - 1-1/4
Cut Dia Max 1.4800 37.59MM
Cutting & Machining Properties
Insert Style SY
Insert Shape/Cutter Pocket Shape Square
Cool Sply Type External
Coolant Thru No
Fasteners & Connectors
Insert Screw 7006316
