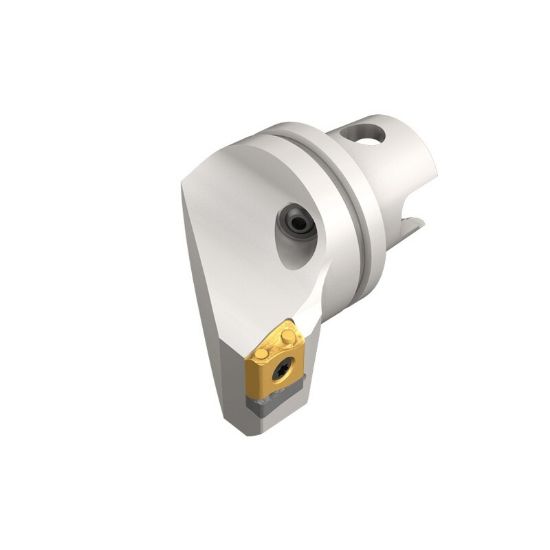

Picture of ISCAR IM50 SLANL-15 TANG Turning Stick Tool On Edge Insert 1.968 KM

ISCAR IM50 SLANL-15 TANG Turning Stick Tool On Edge Insert 1.968 KM

ANSI: IM50 SLANL-15 TANG

ISO: IM50 SLANL-15 TANG

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC3602298
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Important Notes

Tools with orientation holes in the flange groove can be supplied on request ap max for facing: LNMX 11-.11", LNMX 15-.15"

Details

Holders with ISO 26622-1 tapered shanks for LNMX-HT tangentially, screw clamped inserts. Recommended for heavy-duty, high metal removal rate applications.

Products specifications
Attribute name Attribute value
General Product Information
Shipping State Texas
Application Ext.Turning
Package Size 1
Insert Application General Purpose
Insert Type Negative
Made In USA No
Insert/Tool Tool
Dimensional Specifications
Lead Angle 93°
Machine Side Connection Type KM
Insert Size Ic 15
Overall Len 3.2280 81.99MM
Machine Side Connection Size 1.9685 50.00MM
Tool Material Steel
Cutting & Machining Properties
Insert Style LN
Hand R/L Left
Insert Shape/Cutter Pocket Shape Rectagonal
