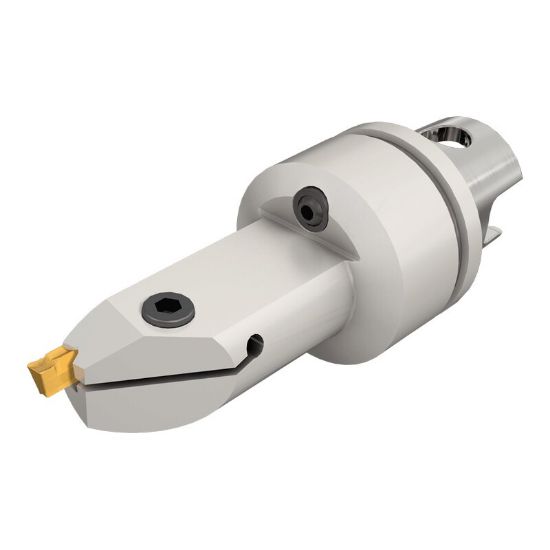

Picture of ISCAR IM40 HFIR-MC Face Grooving,Grooving Stick Tool 1.574 Tool

ISCAR IM40 HFIR-MC Face Grooving,Grooving Stick Tool 1.574 Tool

ANSI: IM40 HFIR-MC

ISO: IM40 HFIR-MC

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC2500498
Delivery date: 3-5 days
$388.80

Important Notes

(*) Tools with orientation holes in the flange groove can be supplied on request DGN & GRIP 4.. - 6.. inserts can be used only with right-hand tools, HGPL 4.. - 6.. inserts with left-hand tools After initial groove, no limitation to widening groove outward or toward center

Details

Tools for internal grooving and turning with ISO 26622-1(*) tapered shank

Products specifications
Attribute name Attribute value
General Product Information
Insert/Tool Tool
Application Face Grooving
Package Size 1
Shipping State Texas
Insert Type Positive
Insert Application General Purpose
Made In USA No
Dimensional Specifications
Insert Size Ic 4, 5, 3
Tool Material Steel
Cutting Width 0.1570 3.99MM
Overall Len 4.1340 105.00MM
Machine Side Connection Size 1.5748 40.00MM
Depth Of Cut Max 0.2090
Machine Side Connection Type KM
Cutting & Machining Properties
Insert Style DG,GR,HF
Hand R/L Right
Insert Shape/Cutter Pocket Shape Dog Bone
