  • ISCAR IDD-EF 1.221-1.311-FB 1.221" Deep Double Tube Drill s with External 4 Start Thread for High Feed (.984-2.559 dia.)

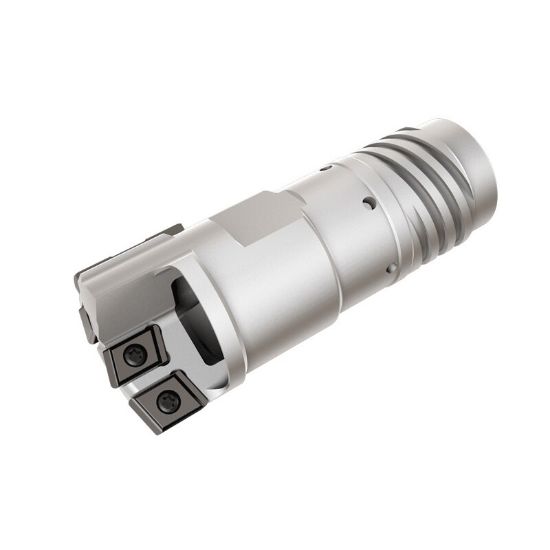

Picture of ISCAR IDD-EF 1.221-1.311-FB 1.221" Deep Double Tube Drill s with External 4 Start Thread for High Feed (.984-2.559 dia.)

ISCAR IDD-EF 1.221-1.311-FB 1.221" Deep Double Tube Drill s with External 4 Start Thread for High Feed (.984-2.559 dia.)

ISO: IDD-EF 1.221-1.311-FB

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC4841155
Delivery date: 3-5 days
$565.31

Cutting Edge Definition

Tool steel is any of various carbon steels and alloy steels that are particularly well-suited to be made into tools and tooling, including cutting tools, dies, hand tools, knives, and others.

Products specifications
Attribute name Attribute value
General Product Information
Shipping State Texas
Application Deep Hole Drilling, Gun Drilling
Made In USA No
Package Size 1
Dimensional Specifications
Overall Len 3.1500 80.01MM
Tool Material Steel
Shank/Pilot Dia 1.1020 27.99MM
Cut Dia Max 1.3110 33.30MM
Cutter Dia 1.2205 31.00MM
Flutes/Inserts 2
Cut Dia Min 1.2205 31.00MM
Cutting & Machining Properties
Connection TDO-I6
Cutting Edge Mat Steel
Coolant Thru Yes
Industry-Specific Applications
Job Shop Yes
