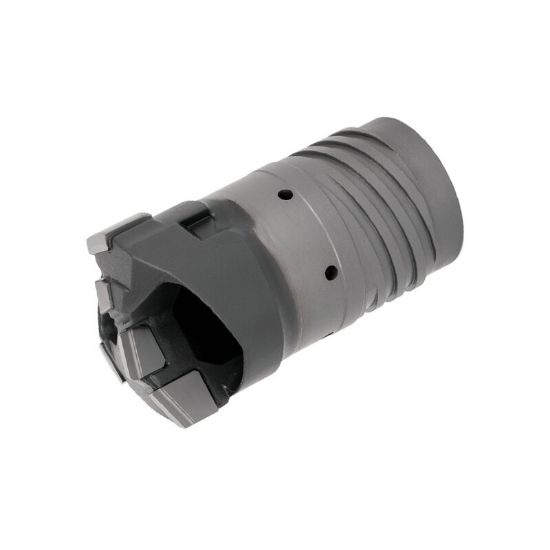

ISCAR IDD-E3 .859-.948 NOM 0 0.859" Deep Double Tube Drill s with External 4 Start Thread and Brazed Tips (.725-2.559 dia.)

ISO: IDD-E3 .859-.948 NOM 0

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC3350003
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Application Deep Hole Drilling, Gun Drilling
Package Size 1
Shipping State Texas
Made In USA No
Dimensional Specifications
Cut Dia Min 0.8594 21.83MM - 55/64
Flutes/Inserts 2
Tool Material Carbide
Cut Dia Max 0.9490 24.10MM
Cutter Dia 0.8594 21.83MM - 55/64
Overall Len 2.2050 56.01MM
Cutting & Machining Properties
Coolant Thru Yes
Connection TDO-I2
Cutting Edge Mat Carbide
Industry-Specific Applications
Job Shop Yes
