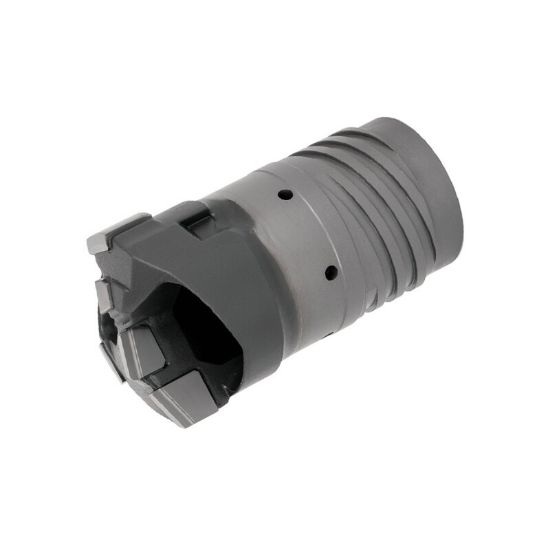

ISCAR IDD-E3 .725-.787 NOM 0 0.725" Deep Double Tube Drill s with External 4 Start Thread and Brazed Tips (.725-2.559 dia.)

ISO: IDD-E3 .725-.787 NOM 0

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC3350001
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Made In USA No
Shipping State Texas
Application Deep Hole Drilling, Gun Drilling
Package Size 1
Dimensional Specifications
Cut Dia Min 0.7244 18.40MM
Overall Len 1.9680 49.99MM
Flutes/Inserts 2
Tool Material Carbide
Cutter Dia 0.7244 18.40MM
Cut Dia Max 0.7870 19.99MM
Cutting & Machining Properties
Coolant Thru Yes
Connection TDO-I0
Cutting Edge Mat Carbide
Industry-Specific Applications
Job Shop Yes
