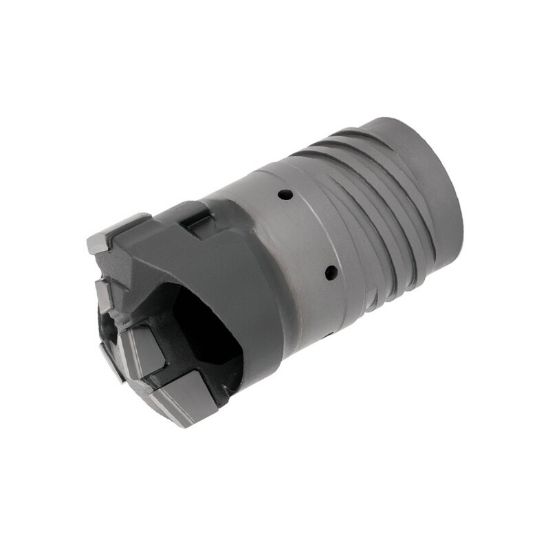

ISCAR IDD-E3 1.426-1.559 NOM 0 1.426" Deep Double Tube Drill s with External 4 Start Thread and Brazed Tips (.725-2.559 dia.)

ISO: IDD-E3 1.426-1.559 NOM 0

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC4880104
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Application Deep Hole Drilling, Gun Drilling
Made In USA No
Shipping State Texas
Package Size 1
Dimensional Specifications
Overall Len 2.8940 73.51MM
Cutter Dia 1.4252 36.20MM
Flutes/Inserts 2
Cut Dia Min 1.4252 36.20MM
Tool Material Carbide
Cut Dia Max 1.5315 38.90MM
Shank/Pilot Dia 1.2990 32.99MM
Cutting & Machining Properties
Cutting Edge Mat Carbide
Connection TDO-I8
Coolant Thru Yes
Industry-Specific Applications
Job Shop Yes
