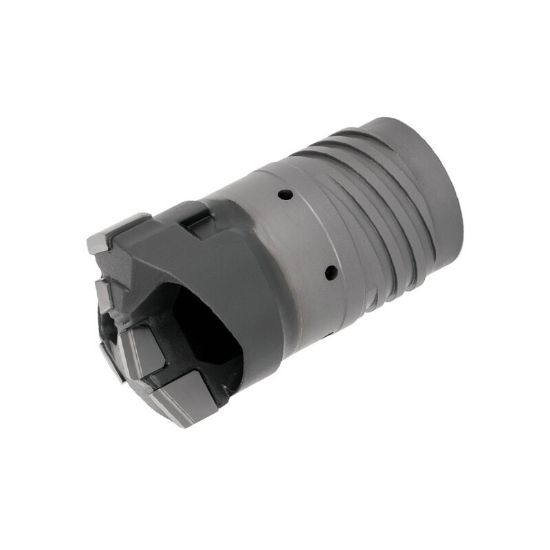

ISCAR IDD-E3 1.130-1.220 NOM 0 1.13" Deep Double Tube Drill s with External 4 Start Thread and Brazed Tips (.725-2.559 dia.)

ISO: IDD-E3 1.130-1.220 NOM 0

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC3350006
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Package Size 1
Application Gun Drilling, Deep Hole Drilling
Shipping State Texas
Made In USA No
Dimensional Specifications
Cutter Dia 1.1299 28.70MM
Cut Dia Max 1.2200 30.99MM
Overall Len 2.5000 63.50MM
Tool Material Carbide
Cut Dia Min 1.1299 28.70MM
Flutes/Inserts 2
Cutting & Machining Properties
Connection TDO-I5
Cutting Edge Mat Carbide
Coolant Thru Yes
Industry-Specific Applications
Job Shop Yes
