  • ISCAR IDC-E1 .949-1.039 NOM 2 0.949" Deep Double Tube Counterbore with a Through Hole, External 4 Start Thread and a Brazed Tip (.725-2.559 dia.)

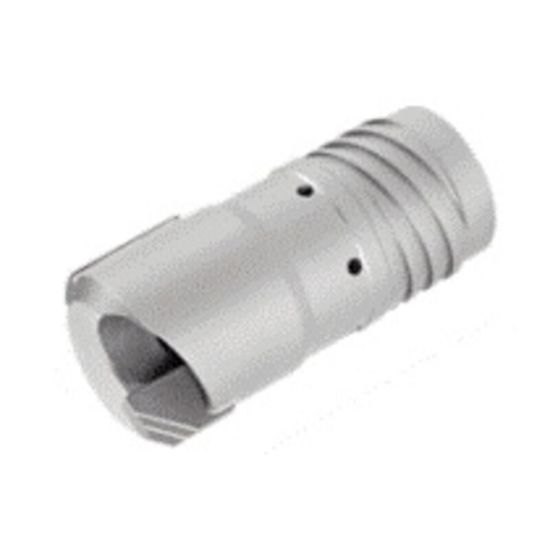

Picture of ISCAR IDC-E1 .949-1.039 NOM 2 0.949" Deep Double Tube Counterbore with a Through Hole, External 4 Start Thread and a Brazed Tip (.725-2.559 dia.)

ISCAR IDC-E1 .949-1.039 NOM 2 0.949" Deep Double Tube Counterbore with a Through Hole, External 4 Start Thread and a Brazed Tip (.725-2.559 dia.)

ISO: IDC-E1 .949-1.039 NOM 2

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC4880376
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Cutting Edge Definition

Tool steel is any of various carbon steels and alloy steels that are particularly well-suited to be made into tools and tooling, including cutting tools, dies, hand tools, knives, and others.

Products specifications
Attribute name Attribute value
General Product Information
Package Size 1
Application Deep Hole Drilling, Gun Drilling
Made In USA No
Shipping State Texas
Dimensional Specifications
Shank/Pilot Dia 0.8268 21.00MM
Overall Len 2.5590 65.00MM
Flutes/Inserts 1
Cut Dia Max 1.0390 26.39MM
Tool Material Steel
Cutter Dia 0.9488 24.10MM
Cut Dia Min 0.9488 24.10MM
Cutting & Machining Properties
Cutting Edge Mat Steel
Coolant Thru Yes
Connection TDO-I3
Industry-Specific Applications
Job Shop Yes
