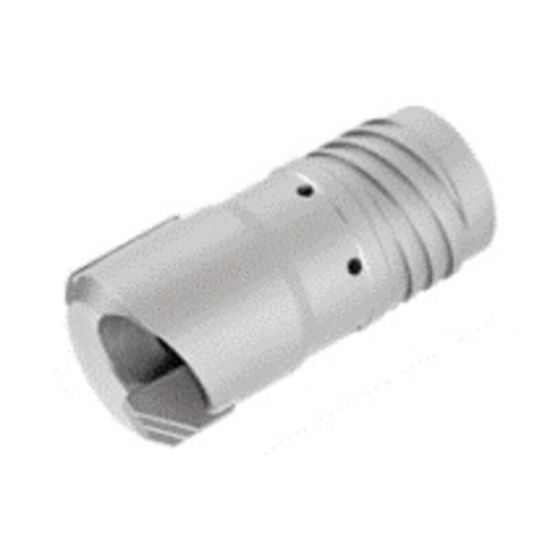

ISCAR IDC-E1 .949-1.039 NOM 0 0.949" Deep Double Tube Counterbore with a Through Hole, External 4 Start Thread and a Brazed Tip (.725-2.559 dia.)

ISO: IDC-E1 .949-1.039 NOM 0

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC4880113
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Package Size 1
Made In USA No
Shipping State Texas
Application Deep Hole Drilling, Gun Drilling
Dimensional Specifications
Shank/Pilot Dia 0.8268 21.00MM
Cut Dia Max 1.0390 26.39MM
Cutter Dia 0.9488 24.10MM
Tool Material Carbide
Cut Dia Min 0.9488 24.10MM
Overall Len 2.5590 65.00MM
Flutes/Inserts 1
Cutting & Machining Properties
Cutting Edge Mat Carbide
Coolant Thru Yes
Connection TDO-I3
Industry-Specific Applications
Job Shop Yes
