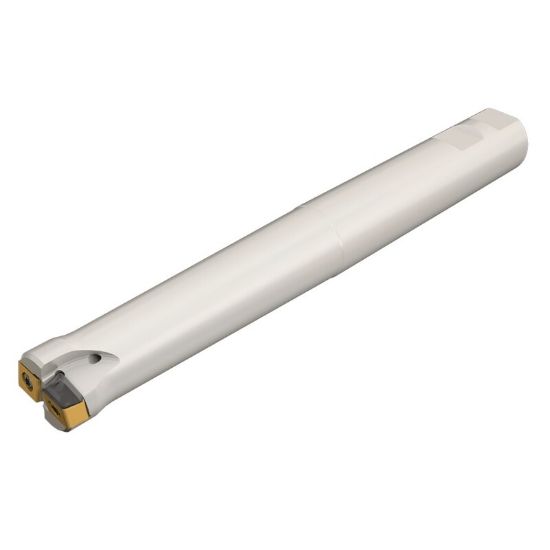

Picture of ISCAR HTP D1.50-4-L10-C1.25LN10 Milling Cutter 1.500 Diameter Round 1.250 10.00 OAL 4 Flute

ISCAR HTP D1.50-4-L10-C1.25LN10 Milling Cutter 1.500 Diameter Round 1.250 10.00 OAL 4 Flute

ANSI: HTP D1.50-4-L10-C1.25LN10

ISO: HTP D1.50-4-L10-C1.25LN10

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC3105126
Delivery date: 3-5 days
$533.76

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Application Plunge Milling
Package Size 1
Insert Type Negative
Insert Application Semi Finishing, Roughing
Shipping State Texas
Insert/Tool Tool
Made In USA No
Dimensional Specifications
Cut Dia Min 1.5000 38.10MM - 1-1/2
Tool Material Steel
Machine Side Connection Size 1.2500 31.75MM
Cutter Dia 1.5000 38.10MM - 1-1/2
Machine Side Connection Type Weldon
Overall Len 10.0000 254.00MM
Insert Size Ic 10
Shank/Pilot Dia 1.2500 31.75MM - 1-1/4
Depth Of Cut Max 0.3150
Flutes/Inserts 4
Cutting & Machining Properties
Insert Style LN
Coolant Thru Yes
Insert Shape/Cutter Pocket Shape Rectagonal
Cool Sply Type Through Hole
Fasteners & Connectors
Insert Screw 7002495
