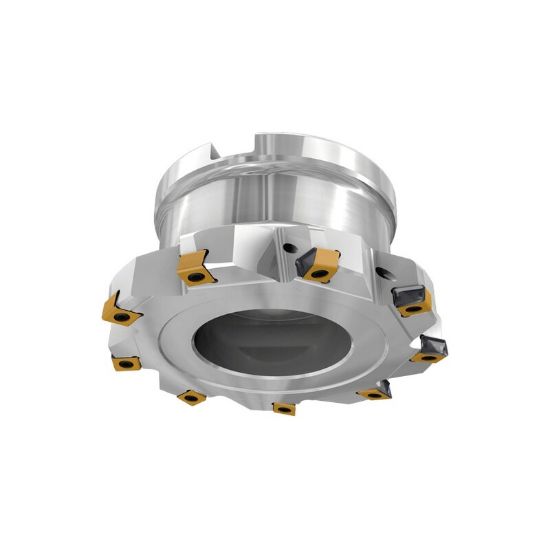

Picture of ISCAR HTF D4.0-08-1.50-R-LN10 Milling Cutter 4.000 Diameter Face Mill 1.500 2.000 OAL 8 Flute

ISCAR HTF D4.0-08-1.50-R-LN10 Milling Cutter 4.000 Diameter Face Mill 1.500 2.000 OAL 8 Flute

ANSI: HTF D4.0-08-1.50-R-LN10

ISO: HTF D4.0-08-1.50-R-LN10

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC3331913
Delivery date: 3-5 days
$1,161.60

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Application Face Milling, Micro Finishing
Insert Application Semi Finishing, Roughing
Shipping State Texas
Package Size 1
Insert Type Negative
Made In USA No
Insert/Tool Tool
Dimensional Specifications
Cut Dia Min 4.0000 101.60MM
Flutes/Inserts 8
Cut Dia Max 4.0000 101.60MM
Machine Side Connection Size 1.5000 38.10MM
Depth Of Cut Max 0.0138
Machine Side Connection Type Face Mill/Shell Mill
Overall Len 2.0000 50.80MM
Tool Material Steel
Insert Size Ic 10
Cutter Dia 4.0000 101.60MM
Cutting & Machining Properties
Cool Sply Type Through Hole
Insert Shape/Cutter Pocket Shape Rectagonal
Insert Style HT
Coolant Thru Yes
Fasteners & Connectors
Insert Screw 7002495
