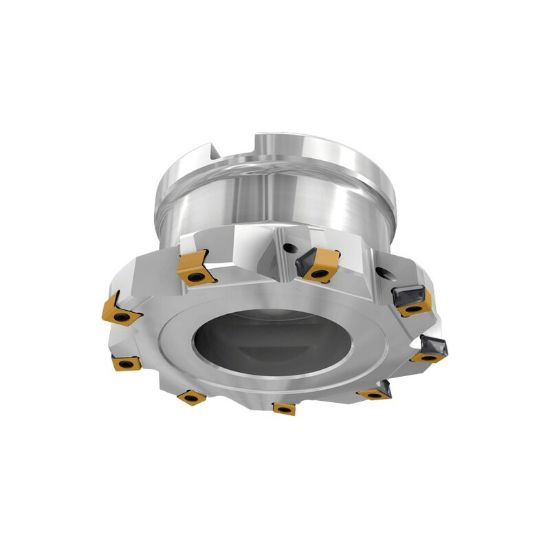

Picture of ISCAR HTF D3.0-07-1.00-R-LN10 Milling Cutter 3.000 Diameter Face Mill 1.000 2.000 OAL 7 Flute

ISCAR HTF D3.0-07-1.00-R-LN10 Milling Cutter 3.000 Diameter Face Mill 1.000 2.000 OAL 7 Flute

ANSI: HTF D3.0-07-1.00-R-LN10

ISO: HTF D3.0-07-1.00-R-LN10

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC3331912
Delivery date: 3-5 days
$960.00

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert Type Negative
Made In USA No
Application Face Milling, Micro Finishing
Shipping State Texas
Insert Application Roughing, Semi Finishing
Package Size 1
Insert/Tool Tool
Dimensional Specifications
Depth Of Cut Max 0.0138
Cut Dia Min 3.0000 76.20MM
Machine Side Connection Type Face Mill/Shell Mill
Overall Len 2.0000 50.80MM
Flutes/Inserts 7
Machine Side Connection Size 1.0000 25.40MM
Cut Dia Max 3.0000 76.20MM
Cutter Dia 3.0000 76.20MM
Insert Size Ic 10
Tool Material Steel
Cutting & Machining Properties
Cool Sply Type Through Hole
Insert Shape/Cutter Pocket Shape Rectagonal
Insert Style HT
Coolant Thru Yes
Fasteners & Connectors
Insert Screw 7002495
