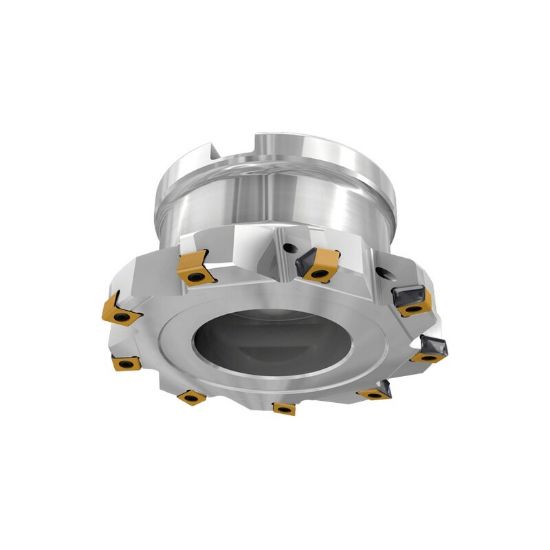

Picture of ISCAR HTF D2.5-06-1.00-R-LN10 Milling Cutter 2.500 Diameter Face Mill 1.000 1.750 OAL 6 Flute

ISCAR HTF D2.5-06-1.00-R-LN10 Milling Cutter 2.500 Diameter Face Mill 1.000 1.750 OAL 6 Flute

ANSI: HTF D2.5-06-1.00-R-LN10

ISO: HTF D2.5-06-1.00-R-LN10

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC3331911
Delivery date: 3-5 days
$782.40

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert Application Roughing, Semi Finishing
Made In USA No
Insert Type Negative
Shipping State Texas
Application Face Milling, Micro Finishing
Package Size 1
Insert/Tool Tool
Dimensional Specifications
Overall Len 1.7500 44.45MM
Machine Side Connection Type Face Mill/Shell Mill
Depth Of Cut Max 0.0138
Cut Dia Max 2.5000 63.50MM - 2-1/2
Tool Material Steel
Cut Dia Min 2.5000 63.50MM - 2-1/2
Machine Side Connection Size 1.0000 25.40MM
Flutes/Inserts 6
Insert Size Ic 10
Cutter Dia 2.5000 63.50MM - 2-1/2
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Rectagonal
Cool Sply Type Through Hole
Insert Style HT
Coolant Thru Yes
Fasteners & Connectors
Insert Screw 7002495
