  • ISCAR HSM90S FAL-D3.0-4-1.0-14 Milling Cutter 90.0° 3.000 Diameter Face Mill 1.000 2.250 OAL 4 Flute

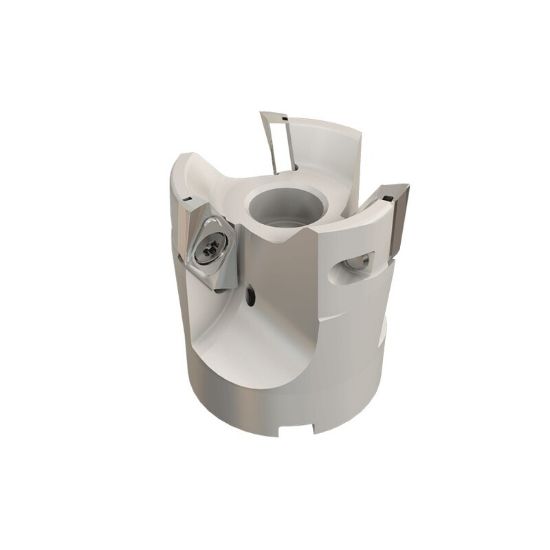

Picture of ISCAR HSM90S FAL-D3.0-4-1.0-14 Milling Cutter 90.0° 3.000 Diameter Face Mill 1.000 2.250 OAL 4 Flute

ISCAR HSM90S FAL-D3.0-4-1.0-14 Milling Cutter 90.0° 3.000 Diameter Face Mill 1.000 2.250 OAL 4 Flute

ANSI: HSM90S FAL-D3.0-4-1.0-14

ISO: HSM90S FAL-D3.0-4-1.0-14

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC3106431
Delivery date: 3-5 days
$918.72

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert Application Semi Finishing, Roughing
Shipping State Texas
Application Ramp Milling, Side Milling, Face Milling, Slot Milling, Pocket Milling
Insert Type Positive
Package Size 1
Insert/Tool Tool
Made In USA No
Dimensional Specifications
Insert Size Ic 14
Depth Of Cut Max 0.5310
Cut Dia Max 3.0000 76.20MM
Cutter Dia 3.0000 76.20MM
Overall Len 2.2500 57.15MM
Tool Material Steel
Cut Dia Min 3.0000 76.20MM
Machine Side Connection Type Face Mill/Shell Mill
Flutes/Inserts 4
Machine Side Connection Size 1.0000 25.40MM
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Parallelogram
Coolant Thru Yes
Insert Style AP
Cool Sply Type Through Hole
Fasteners & Connectors
Insert Screw 7006264
