  • ISCAR HSM90S FAL-D2.5-3-1.0-14 Milling Cutter 90.0° 2.500 Diameter Face Mill 1.000 1.750 OAL 3 Flute

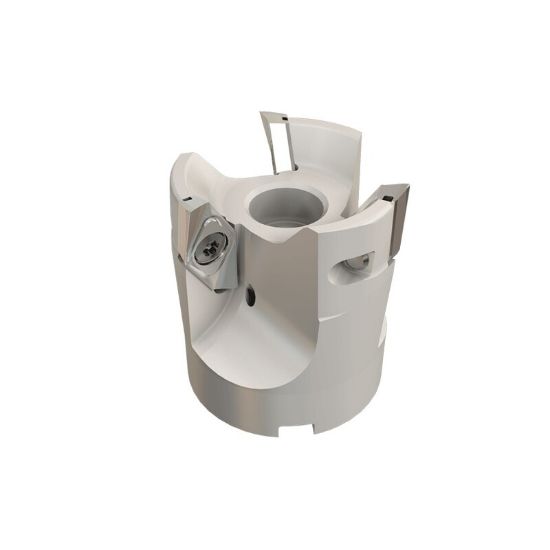

Picture of ISCAR HSM90S FAL-D2.5-3-1.0-14 Milling Cutter 90.0° 2.500 Diameter Face Mill 1.000 1.750 OAL 3 Flute

ISCAR HSM90S FAL-D2.5-3-1.0-14 Milling Cutter 90.0° 2.500 Diameter Face Mill 1.000 1.750 OAL 3 Flute

ANSI: HSM90S FAL-D2.5-3-1.0-14

ISO: HSM90S FAL-D2.5-3-1.0-14

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC3106430
Delivery date: 3-5 days
$774.72

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert Type Positive
Application Face Milling, Pocket Milling, Ramp Milling, Side Milling, Slot Milling
Insert/Tool Tool
Insert Application Semi Finishing, Roughing
Shipping State Texas
Made In USA No
Package Size 1
Dimensional Specifications
Tool Material Steel
Cut Dia Max 2.5000 63.50MM - 2-1/2
Machine Side Connection Type Face Mill/Shell Mill
Cut Dia Min 2.5000 63.50MM - 2-1/2
Machine Side Connection Size 1.0000 25.40MM
Insert Size Ic 14
Overall Len 1.7500 44.45MM
Depth Of Cut Max 0.5310
Cutter Dia 2.5000 63.50MM - 2-1/2
Flutes/Inserts 3
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Parallelogram
Insert Style AP
Cool Sply Type Through Hole
Coolant Thru Yes
Fasteners & Connectors
Insert Screw 7006264
