  • ISCAR HSM90S FAL-D2.0-4-.75-22 Milling Cutter 90.0° 2.000 Diameter Face Mill 0.750 2.240 OAL 4 Flute

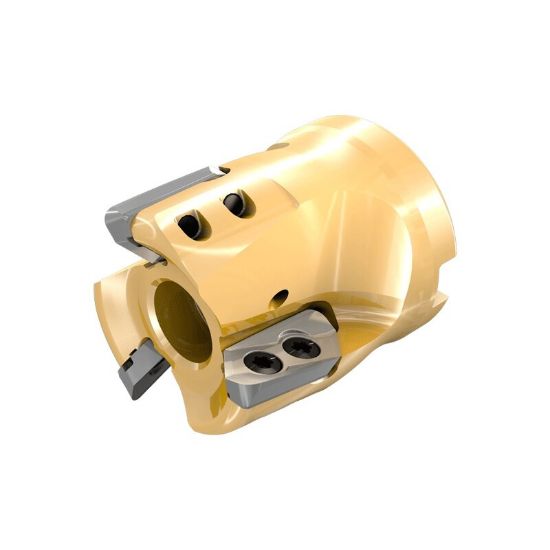

Picture of ISCAR HSM90S FAL-D2.0-4-.75-22 Milling Cutter 90.0° 2.000 Diameter Face Mill 0.750 2.240 OAL 4 Flute

ISCAR HSM90S FAL-D2.0-4-.75-22 Milling Cutter 90.0° 2.000 Diameter Face Mill 0.750 2.240 OAL 4 Flute

ANSI: HSM90S FAL-D2.0-4-.75-22

ISO: HSM90S FAL-D2.0-4-.75-22

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC3354043
Delivery date: 3-5 days
$717.12
Products specifications
Attribute name Attribute value
General Product Information
Insert/Tool Tool
Application Pocket Milling, Face Milling, Ramp Milling, Side Milling, Slot Milling
Insert Application Semi Finishing, Roughing
Shipping State Texas
Package Size 1
Insert Type Positive
Made In USA No
Dimensional Specifications
Tool Material Steel
Machine Side Connection Size 0.7500 19.05MM
Cutter Dia 2.0000 50.80MM
Overall Len 2.2400 56.90MM
Flutes/Inserts 4
Insert Size Ic 22
Cut Dia Max 2.0000 50.80MM
Machine Side Connection Type Face Mill/Shell Mill
Depth Of Cut Max 0.8700
Cut Dia Min 2.0000 50.80MM
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Parallelogram
Insert Style AP
Cool Sply Type Through Hole
Coolant Thru Yes
Fasteners & Connectors
Insert Screw 4308444
