  • ISCAR HSM90S FAL-D2.0-3-.75-22 Milling Cutter 90.0° 2.000 Diameter Face Mill 0.750 2.240 OAL 3 Flute

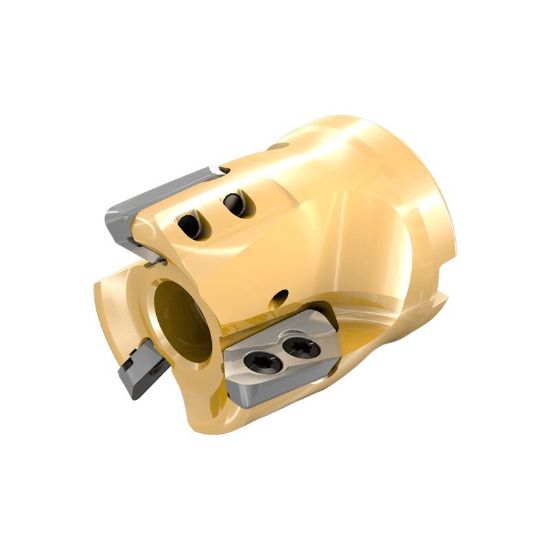

Picture of ISCAR HSM90S FAL-D2.0-3-.75-22 Milling Cutter 90.0° 2.000 Diameter Face Mill 0.750 2.240 OAL 3 Flute

ISCAR HSM90S FAL-D2.0-3-.75-22 Milling Cutter 90.0° 2.000 Diameter Face Mill 0.750 2.240 OAL 3 Flute

ANSI: HSM90S FAL-D2.0-3-.75-22

ISO: HSM90S FAL-D2.0-3-.75-22

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC3354042
Delivery date: 3-5 days
$686.40

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Shipping State Texas
Application Pocket Milling, Ramp Milling, Slot Milling, Face Milling, Side Milling
Made In USA No
Insert/Tool Tool
Insert Type Positive
Package Size 1
Insert Application Semi Finishing, Roughing
Dimensional Specifications
Insert Size Ic 22
Cutter Dia 2.0000 50.80MM
Machine Side Connection Type Face Mill/Shell Mill
Depth Of Cut Max 0.8700
Tool Material Steel
Machine Side Connection Size 0.7500 19.05MM
Overall Len 2.2400 56.90MM
Cut Dia Min 2.0000 50.80MM
Cut Dia Max 2.0000 50.80MM
Flutes/Inserts 3
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Parallelogram
Cool Sply Type Through Hole
Coolant Thru Yes
Insert Style AP
Fasteners & Connectors
Insert Screw 4308444
