  • ISCAR HSM90S FAL-D2.0-2-.75-22 Milling Cutter 90.0° 2.000 Diameter Face Mill 0.750 2.240 OAL 2 Flute

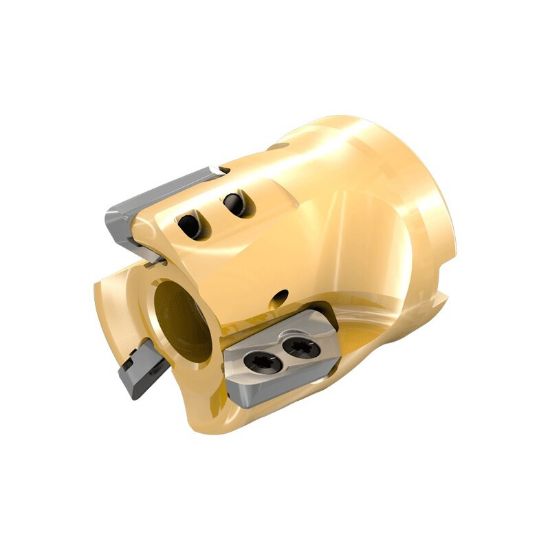

Picture of ISCAR HSM90S FAL-D2.0-2-.75-22 Milling Cutter 90.0° 2.000 Diameter Face Mill 0.750 2.240 OAL 2 Flute

ISCAR HSM90S FAL-D2.0-2-.75-22 Milling Cutter 90.0° 2.000 Diameter Face Mill 0.750 2.240 OAL 2 Flute

ANSI: HSM90S FAL-D2.0-2-.75-22

ISO: HSM90S FAL-D2.0-2-.75-22

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC3342721
Delivery date: 3-5 days
$641.28
Products specifications
Attribute name Attribute value
General Product Information
Insert Type Positive
Application Face Milling, Ramp Milling, Side Milling, Slot Milling, Pocket Milling
Insert Application Roughing, Semi Finishing
Made In USA No
Shipping State Texas
Insert/Tool Tool
Package Size 1
Dimensional Specifications
Depth Of Cut Max 0.8700
Machine Side Connection Type Face Mill/Shell Mill
Insert Size Ic 22
Cutter Dia 2.0000 50.80MM
Cut Dia Max 2.0000 50.80MM
Tool Material Steel
Machine Side Connection Size 0.7500 19.05MM
Cut Dia Min 2.0000 50.80MM
Overall Len 2.2400 56.90MM
Flutes/Inserts 2
Cutting & Machining Properties
Insert Style AP
Cool Sply Type Through Hole
Insert Shape/Cutter Pocket Shape Parallelogram
Coolant Thru Yes
Fasteners & Connectors
Insert Screw 3323647
