  • ISCAR HSM90S FAL-D2.0-2-.75-14 Milling Cutter 90.0° 2.000 Diameter Face Mill 0.750 2.250 OAL 2 Flute

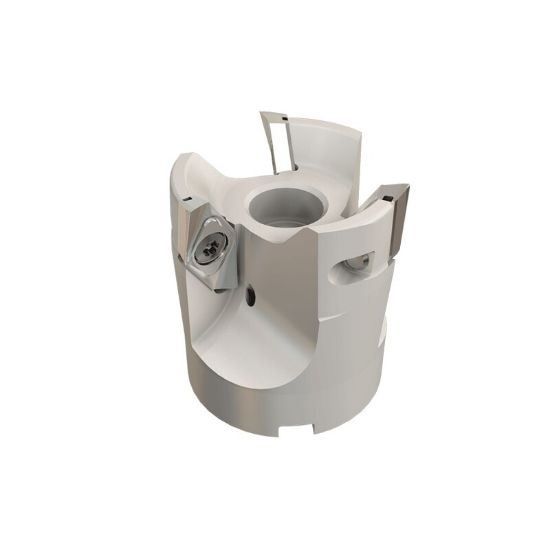

Picture of ISCAR HSM90S FAL-D2.0-2-.75-14 Milling Cutter 90.0° 2.000 Diameter Face Mill 0.750 2.250 OAL 2 Flute

ISCAR HSM90S FAL-D2.0-2-.75-14 Milling Cutter 90.0° 2.000 Diameter Face Mill 0.750 2.250 OAL 2 Flute

ANSI: HSM90S FAL-D2.0-2-.75-14

ISO: HSM90S FAL-D2.0-2-.75-14

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC3106074
Delivery date: 3-5 days
$641.28

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Application Ramp Milling, Slot Milling, Pocket Milling, Side Milling, Face Milling
Made In USA No
Insert Application Semi Finishing, Roughing
Shipping State Texas
Insert/Tool Tool
Insert Type Positive
Package Size 1
Dimensional Specifications
Insert Size Ic 14
Machine Side Connection Type Face Mill/Shell Mill
Tool Material Steel
Cutter Dia 2.0000 50.80MM
Flutes/Inserts 2
Depth Of Cut Max 0.5310
Cut Dia Min 2.0000 50.80MM
Cut Dia Max 2.0000 50.80MM
Machine Side Connection Size 0.7500 19.05MM
Overall Len 2.2500 57.15MM
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Parallelogram
Insert Style AP
Cool Sply Type Through Hole
Coolant Thru Yes
Fasteners & Connectors
Insert Screw 7004916
