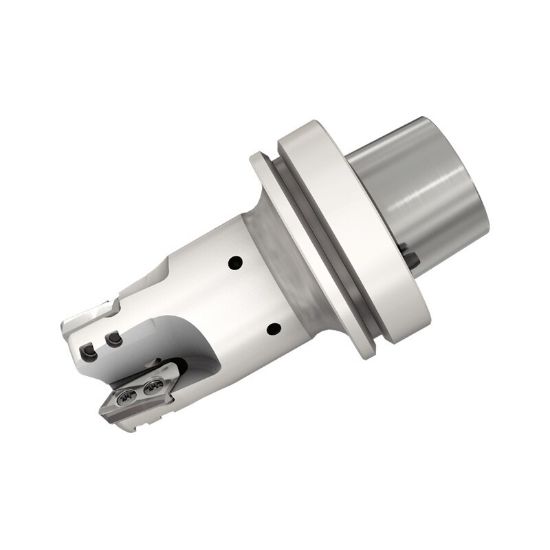

Picture of ISCAR HSM90S EALD2-3-HSK80FM-22 Milling Cutter 90.0° 2.000 Diameter HSK 3.149 5.905 OAL 3 Flute

ISCAR HSM90S EALD2-3-HSK80FM-22 Milling Cutter 90.0° 2.000 Diameter HSK 3.149 5.905 OAL 3 Flute

ANSI: HSM90S EALD2-3-HSK80FM-22

ISO: HSM90S EALD2-3-HSK80FM-22

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC3354045
Delivery date: 3-5 days
$2,064.00

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Application Side Milling, Face Milling, Pocket Milling, Ramp Milling, Slot Milling
Insert Application Semi Finishing, Roughing
Shipping State Texas
Package Size 1
Insert/Tool Tool
Made In USA No
Insert Type Positive
Dimensional Specifications
Cutter Dia 2.0000 50.80MM
Insert Size Ic 22
Cut Dia Min 2.0000 50.80MM
Cut Dia Max 2.0000 50.80MM
Flutes/Inserts 3
Machine Side Connection Type HSK
Tool Material Steel
Machine Side Connection Size 3.1496 80.00MM
Overall Len 5.9050 149.99MM
Depth Of Cut Max 0.8700
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Parallelogram
Coolant Thru Yes
Insert Style AP
Cool Sply Type Through Hole
Fasteners & Connectors
Insert Screw 4308444
