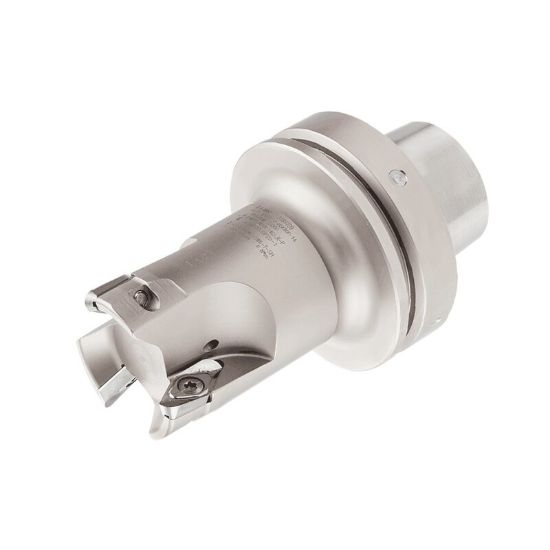

Picture of ISCAR HSM90S EALD2-3-HSK63FM-14 Milling Cutter 90.0° 2.000 Diameter HSK 2.480 4.984 OAL 3 Flute

ISCAR HSM90S EALD2-3-HSK63FM-14 Milling Cutter 90.0° 2.000 Diameter HSK 2.480 4.984 OAL 3 Flute

ANSI: HSM90S EALD2-3-HSK63FM-14

ISO: HSM90S EALD2-3-HSK63FM-14

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC3181019
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert Type Positive
Application Face Milling, Side Milling, Pocket Milling, Ramp Milling, Slot Milling
Package Size 1
Insert Application Roughing, Semi Finishing
Made In USA No
Insert/Tool Tool
Shipping State Texas
Dimensional Specifications
Machine Side Connection Size 2.4803 63.00MM
Overall Len 4.9840 126.59MM
Machine Side Connection Type HSK
Tool Material Steel
Cutter Dia 2.0000 50.80MM
Depth Of Cut Max 0.5310
Cut Dia Min 2.0000 50.80MM
Cut Dia Max 2.0000 50.80MM
Flutes/Inserts 3
Insert Size Ic 14
Cutting & Machining Properties
Insert Style AL
Max Ramp Angle 8.00°
Cool Sply Type Through Hole
Coolant Thru Yes
Insert Shape/Cutter Pocket Shape Parallelogram
Fasteners & Connectors
Insert Screw 4390045
